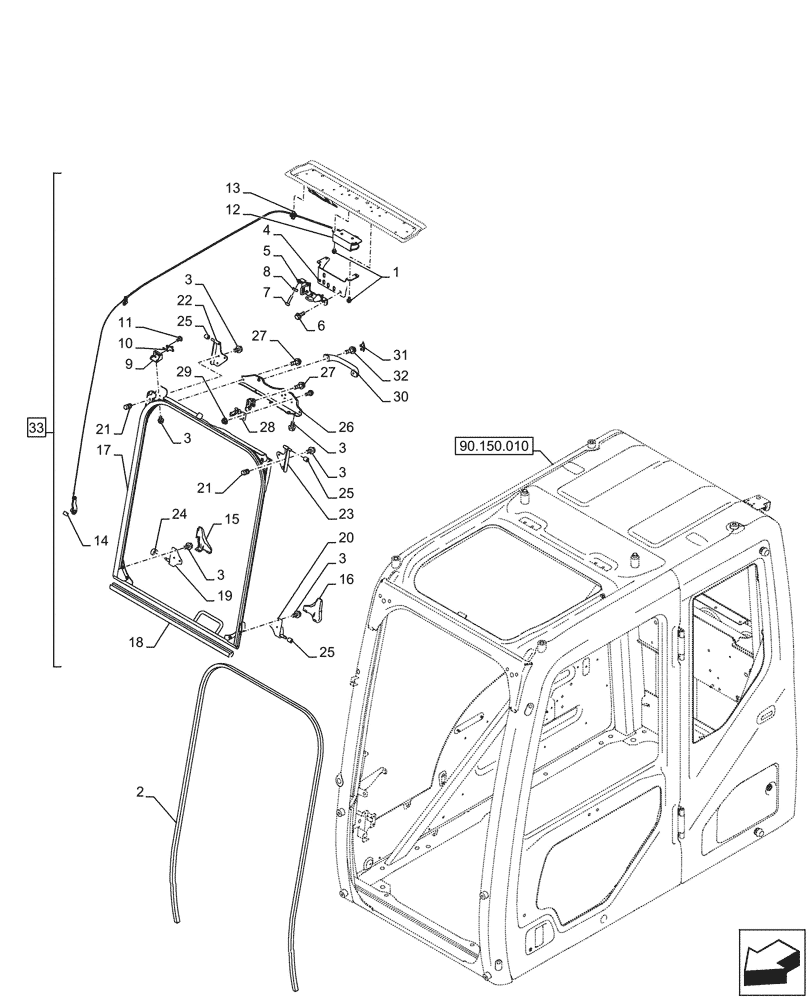

Запчасти Case CX290D LC MH (90.156.020) - WINDSHIELD, LATCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN18870

BOLT

M6 x 1.0 x 12mm

1шт.

2

KHN25740

SEAL, GLASS

1шт.

3

KHN15690

BOLT

M6 x 1.0 x 12mm

20шт.

4

KHN25300

BRACKET, SUPPORTING

1шт.

5

KHN25380

STRIKER

1шт.

6

KHN18930

BOLT

M10 x 1.25 x 25mm

2шт.

7

KHN15990

STOP LOCK

1шт.

8

KHN19030

NUT

M10 x 1.5

1шт.

9

KHN25660

BRACKET, SUPPORTING

1шт.

10

KHN26000

SWITCH

1шт.

11

KHN25960

SCREW

M4 x 0.7 x 10mm

2шт.

12

KHN25700

SPRING

1шт.

13

161381A1

COLLAR

1шт.

14

KHN15980

STOP LOCK

2шт.

15

KHN16220

COVER

1шт.

16

KHN16230

COVER

1шт.

17

KHN25220

WINDOW FRAME

1шт.

18

KHN25750

SEAL

1шт.

19

KHN15670

STAY

1шт.

20

KHN25770

STAY

1шт.

21

KHN15830

STOP LOCK

2шт.

22

KHN25680

STAY

1шт.

23

KHN25690

STAY

1шт.

24

KHN15800

ROLLER

1шт.

25

KHN25600

ROLLER

3шт.

26

KHN25280

COVER

1шт.

27

KHN28230

BOLT

M6 x 1.0 x 12mm

5шт.

28

KHN25410

LOCK

1шт.

29

KHN25980

NUT

M6 x 1.0

2шт.

30

KHN25870

HANDLE

1шт.

31

KHN25880

CAP

2шт.

32

KHN15770

BOLT,Flng, M6 x 20mm

M6 x 1.0 x 20mm

2шт.

33

KHN25210

WINDOW ASSY

ASSY, Incl 17 - 32

1шт.
