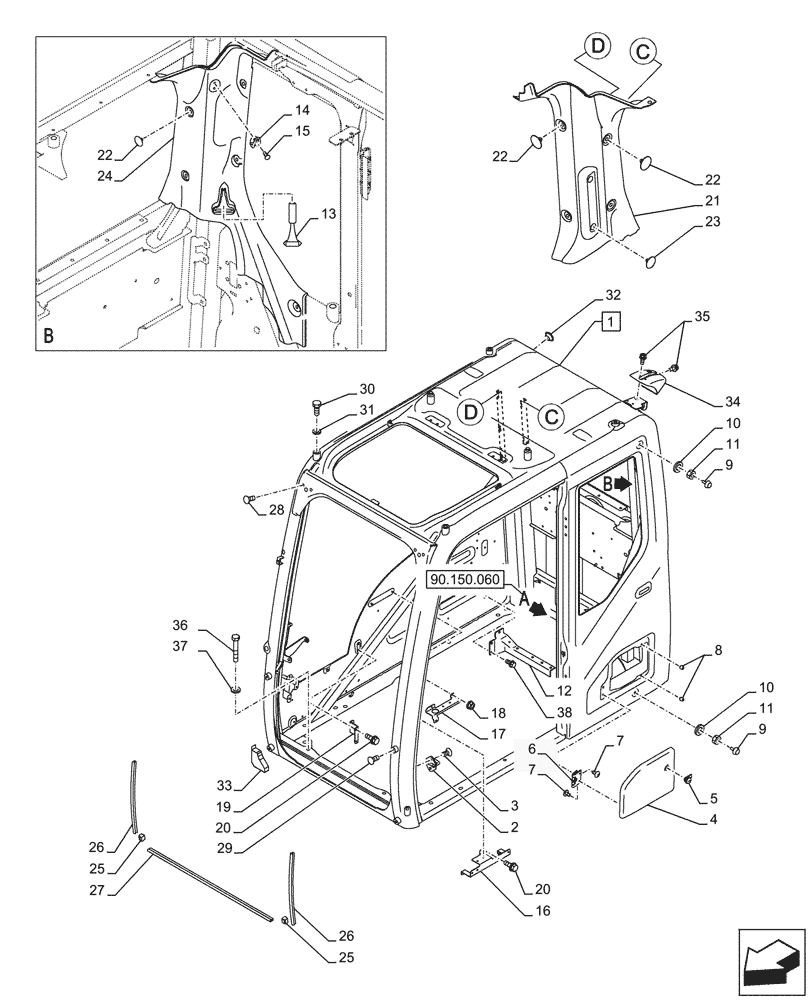

Запчасти Case CX290D LC MH (90.150.010) - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN38494

CAB

ASSY, Incl 2 - 33

1шт.

See also Figure 55.510.030, 55.512.010, 90.118.020, 90.118.040, 90.150.010, 90.150.060, 90.151.020, 90.154.010, 90.156.010, 90.156.020, 90.160.050

1шт.

2

KHN33990

STOP

1шт.

3

KHN33980

SCREW

M8 x 1.25 x 20mm

2шт.

4

KHN37460

COVER

1шт.

5

KHN26010

LOCK

1шт.

6

KHN25390

HINGE

1шт.

7

KHN18800

SCREW,Spcl, M6 x 12mm

M6 x 1.0 x 12mm

4шт.

8

KHN25840

STOP

2шт.

9

161356A1

STOP

2шт.

10

KHN25990

WASHER

2шт.

11

161357A1

NUT

M10 x 1.25

2шт.

12

KHN25340

BRACKET, SUPPORTING

1шт.

13

KHN25950

HAMMER

1шт.

14

KHN14250

HOOK

1шт.

15

KHN14260

SCREW

M4 x 0.7 x 12mm

2шт.

16

KHN25320

BRACKET, SUPPORTING

1шт.

17

KHN25370

BRACKET, SUPPORTING

1шт.

18

KHN25980

NUT

M6 x 1.0

2шт.

19

KHN25360

BRACKET, SUPPORTING

1шт.

20

KHN18870

BOLT

M6 x 1.0 x 12mm

1шт.

21

KHN25490

TRIM

1шт.

22

KHN25900

CLIP

9шт.

23

KHN25910

CLIP

2шт.

24

KHN25510

TRIM

1шт.

25

KHN25850

STOP

2шт.

26

KHN25820

SEAL, GLASS

2шт.

27

KHN15030

SEAL, GLASS

1шт.

28

KHN25930

BOLT

4шт.

29

KHN22940

PLASTIC PLUG

M12 x 1.75 x 19mm

4шт.

30

KHN16280

BOLT,Spcl

M16 x 2 x 25mm

4шт.

31

KHN16290

WASHER

4шт.

32

KHN14310

GROMMET

1шт.

33

KHN33640

SEAL

1шт.

34

KHN27450

COVER

1шт.

35

KHN14710

BOLT,Spcl

M6 x 1.0 x 14mm

1шт.

36

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

2шт.

37

150811A1

WASHER

2шт.

38

KHN18860

BOLT,Spcl, Hex

3шт.
