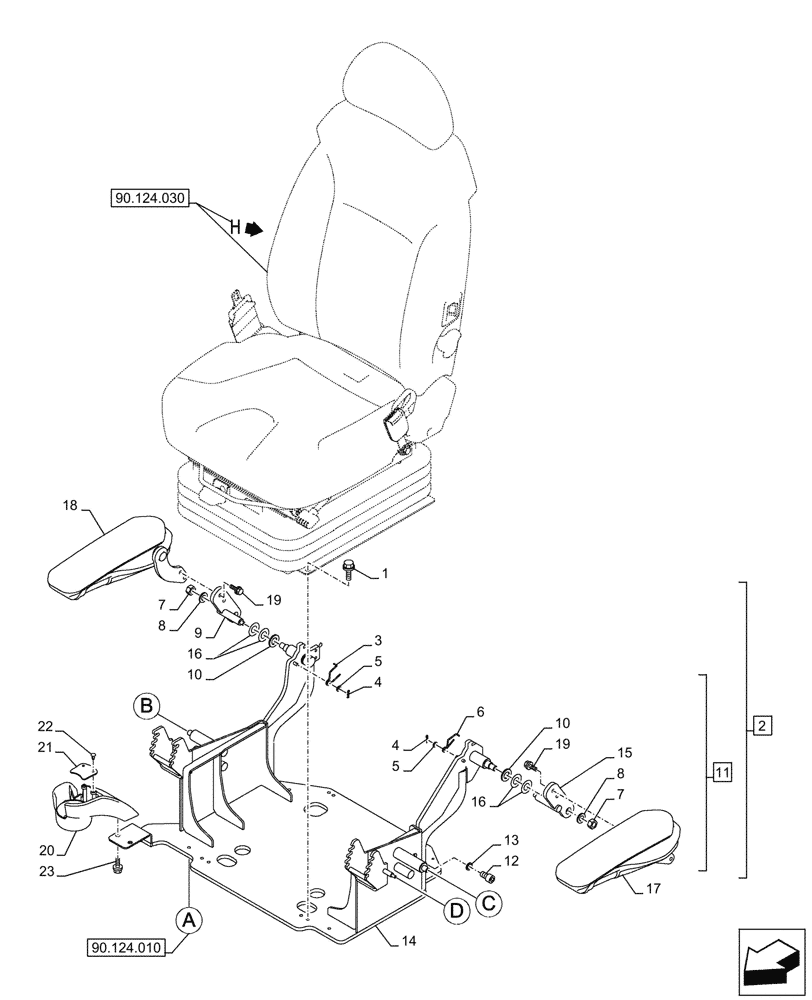

Запчасти Case CX290D LC MH (90.124.020) - VAR - 488035, 781277 - SEAT, AIR SUSPENSION, BASE PLATE, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

166350A1

BOLT

M8 x 20mm

4шт.

2

KHN41881

BOX

ASSY, Incl 3 - 16

1шт.

See also Figure 90.124.010, 90.160.020, 90.160.030, 90.160.040

1шт.

3

KHN40040

TORSION SPRING

1шт.

4

165192A1

COTTER PIN

2шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

KHN40050

TORSION SPRING

1шт.

7

162R012VR

NUT

M12

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

9

KHN39750

BRACKET

1шт.

10

AMJ0552

WASHER

2шт.

11

KHN41891

BRACKET

ASSY, Incl 12 - 14

1шт.

See also Figure 90.124.010

1шт.

12

862-12020

HEX SOC SCREW,M12 x 20mm, Cl 12.9

1шт.

13

892-11012

LOCK WASHER,M12

1шт.

14

KHN41901

SUPPORT

380mm x 4mm

1шт.

15

KHN39740

BRACKET

1шт.

16

KHN40030

SHIM

T=0.1mm

4шт.

17

KHN39250

ARMREST

1шт.

18

KHN39620

ARMREST

1шт.

19

KHN17270

BOLT,Spcl

M8 x 20mm

4шт.

20

KHN23220

HOLDER

1шт.

21

KHN14760

PLATE

1шт.

22

KHN2470

CLIP

2шт.

23

KHN13540

BOLT,Spcl

2шт.
