Запчасти Case CX290D LC MH (90.124.010) - VAR - 488035, 781277 - SEAT, AIR SUSPENSION, GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

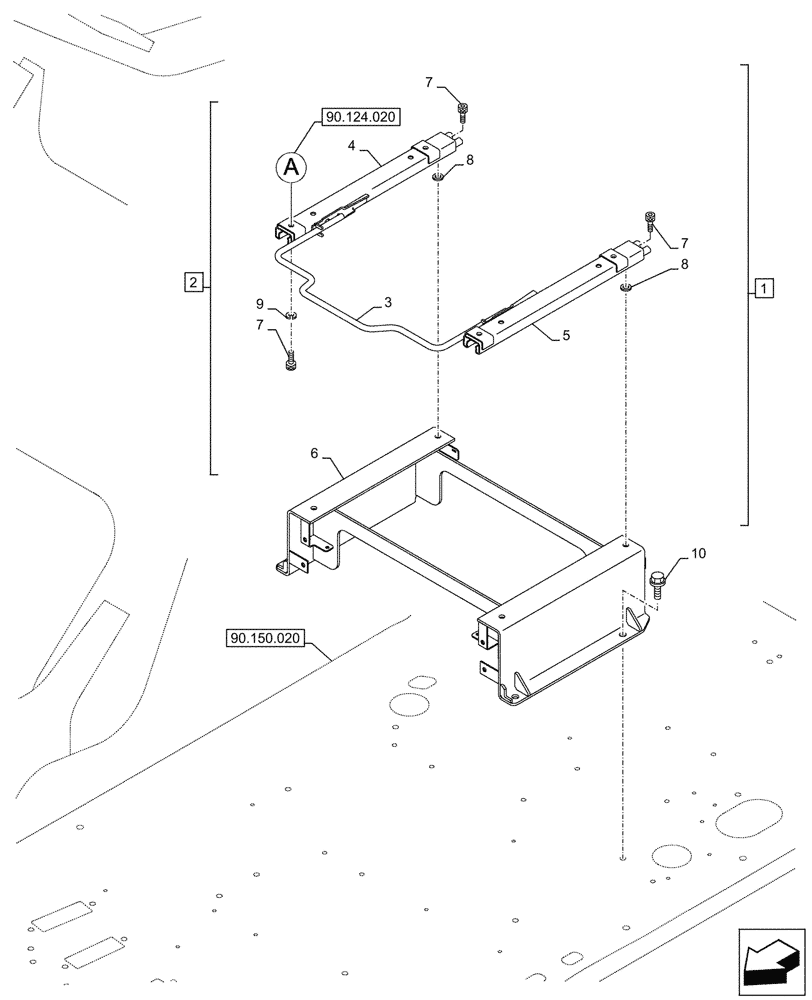

Схема запчастей Case CX290D LC MH - (90.124.010) - VAR - 488035, 781277 - SEAT, AIR SUSPENSION, GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.020
8
9
6
10
7
7
3
2
4
8
1
7
5
90.124.020

Артикул

Название

Примечание

Количество

1

KHN41881

BOX

ASSY, Incl 2 - 9

1шт.

See also Figure 90.124.020, 90.160.020, 90.160.030, 90.160.040

1шт.

2

KHN41891

BRACKET

ASSY, Incl 3 - 9

1шт.

See also Figure 90.124.020

1шт.

3

KHN24050

LEVER

1шт.

4

KHN13421

SLIDE GUIDE

1шт.

5

KHN13431

SLIDE GUIDE

1шт.

6

KHN39240

BASE PLATE

1шт.

7

108R008Y016R

BOLT

M8 x 16mm

8шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

183-108VR

SPRING WASHER

4шт.

10

166346A1

BOLT,Sems, M10

M10 x 16mm

4шт.

Выбрано товаров: 12
