Запчасти Case CX290D LC MH (90.108.050) - WARNING, DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

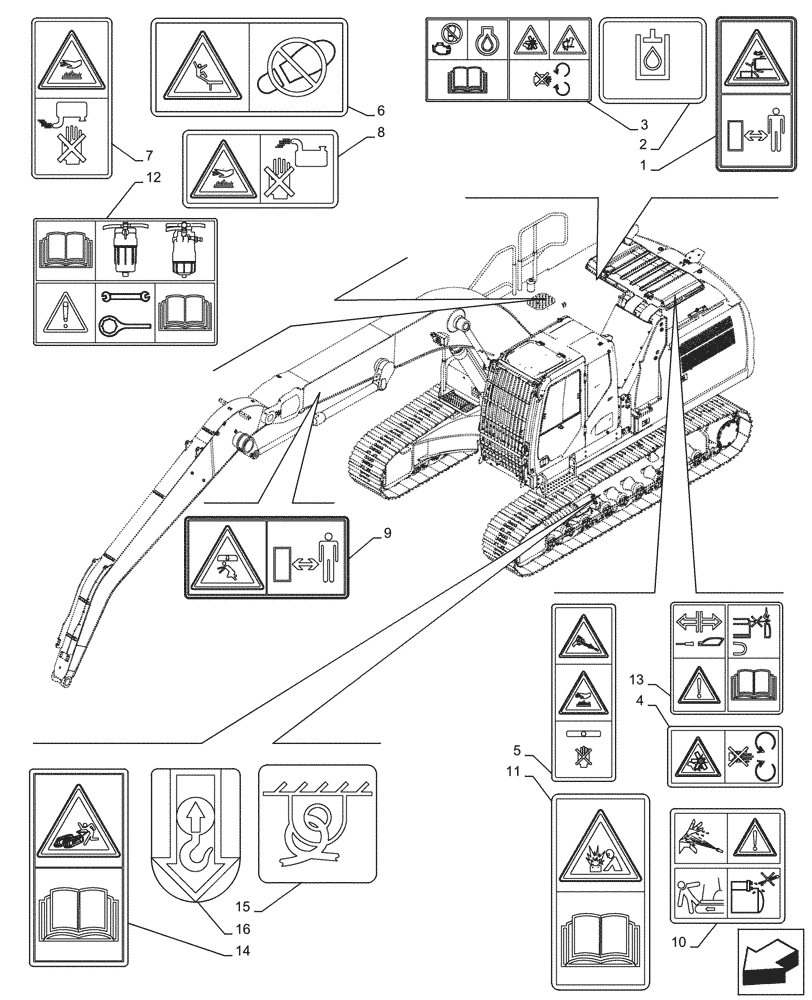

Схема запчастей Case CX290D LC MH - (90.108.050) - WARNING, DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
4
7
12
3
6
5
15
11
1
9
8
10
2
13
16

Артикул

Название

Примечание

Количество

1

KHP17510

DECAL

Keep Out of Work Range of Upper Structure

2шт.

2

168104A1

DECAL

Hydraulic Tank

1шт.

3

KHP26000

DECAL

Engine Operation General

1шт.

4

168109A1

DECAL

Stop The Engine Before Opening The Hood

1шт.

5

168101A1

DECAL

Radiator

1шт.

6

KHP12230

DECAL

Engine hood

2шт.

7

168112A1

DECAL

Warns You Never To Touch A Hot Silencer

1шт.

8

KHP17410

ADHESIVE

Muffler

1шт.

9

168849A1

DECAL

Keep Out of Work Range of Attachment

2шт.

10

KHP25860

DECAL

Warning Decal of High Pressure Common Rail

1шт.

11

KHP17430

WARNING DECAL

Batteries

1шт.

12

KHP26010

DECAL

Maintenance on Fuel Line and Filter

1шт.

13

KHP18460

DECAL

Camera Wiring Precautions

1шт.

14

KHP17390

ADHESIVE

Check Valve

2шт.

15

KHP15201

DECAL

Restraint Location

8шт.

16

KHP19380

LABEL

Lifting Location

4шт.

Выбрано товаров: 16
