Запчасти Case CX290D LC MH (90.105.050) - STD + VAR - 488031 - HOUSING & COVERS, PRE-CLEANER CYCLONE TYPE (90) - PLATFORM, CAB, BODYWORK AND DECALS

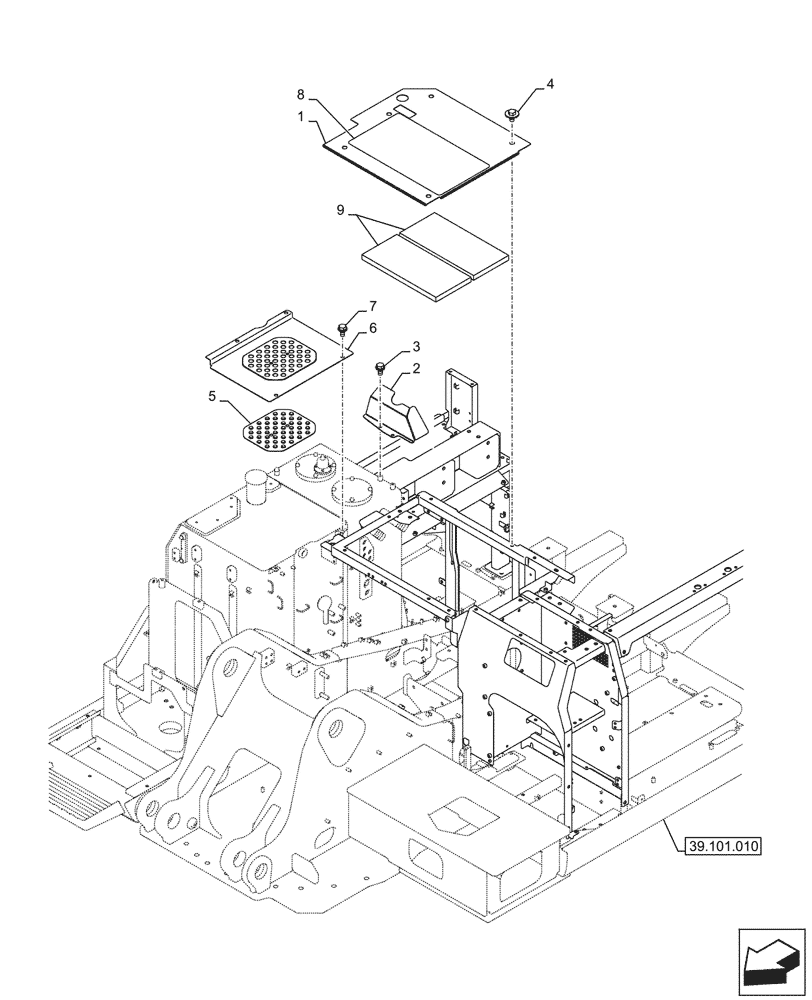

Схема запчастей Case CX290D LC MH - (90.105.050) - STD + VAR - 488031 - HOUSING & COVERS, PRE-CLEANER CYCLONE TYPE (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.010
5
3
8
4
1
2
6
9
7

Артикул

Название

Примечание

Количество

1

KBN19620

COVER

1шт.

2

KBN20000

COVER

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

4

KHN12020

BOLT,Spcl

M12 x 25mm

5шт.

5

KHN10940

RUBBER PAD

2шт.

6

KBN19542

COVER

1шт.

7

105R012Y025R

BOLT

M12 x 25mm

4шт.

8

KHP27350

ANTI-SKID STRIP

380mm x 680mm

1шт.

9

KBN16750

INSULATION

2шт.

Выбрано товаров: 9
