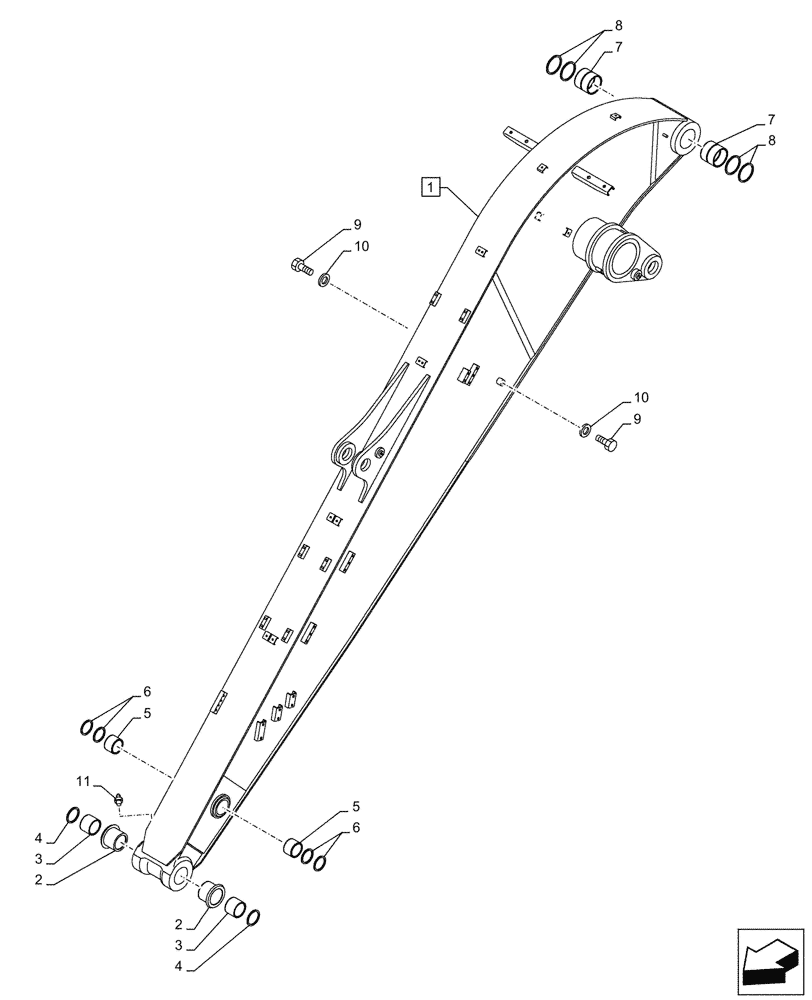

Запчасти Case CX290D LC MH (84.912.010) - VAR - 781930 - ARM (L=5M) (84) - BOOMS, DIPPERS & BUCKETS

1

KBV41930

ASSY, Incl 2 - 8, Serial Range: -NHS7M1271

ARM

1шт.

1

KBV41931

DIPPER

ASSY, Incl 2 - 8, Start Serial: NHS7M1272

1шт.

2

KRV2408

BUSHING

2шт.

3

KRV10910

BUSHING

2шт.

4

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

2шт.

5

KRV2396

BUSHING,75mm ID x 90mm OD x 60mm L

2шт.

6

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

4шт.

7

KBV1360

SELF LUB RING

2шт.

8

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

4шт.

9

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

2шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

11

153630A1

LUBE NIPPLE

1шт.
