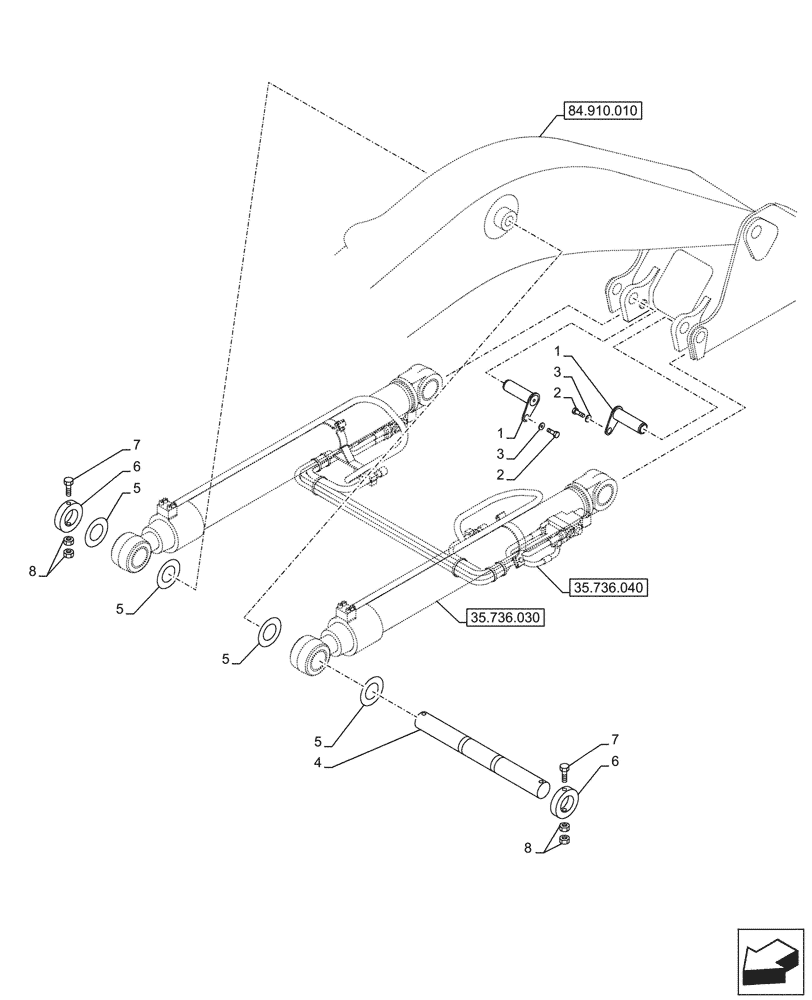

Запчасти Case CX290D LC MH (84.910.020) - VAR - 481064 - BOOM, LIFT CYLINDER, PIN, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS

1

KBV11570

PIN

2шт.

2

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

3

157141A1

WASHER

2шт.

4

KBV19930

PIN

1шт.

5

158453A1

SHIM

T=1.2mm

4шт.

6

163087A1

HOSE CLIP

2шт.

7

514-1219

BOLT,Hex, M20 x 1.5 x 190mm, Cl 10.9

2шт.

8

829-11420

NUT,M20 x 1.5, Cl 10

4шт.
