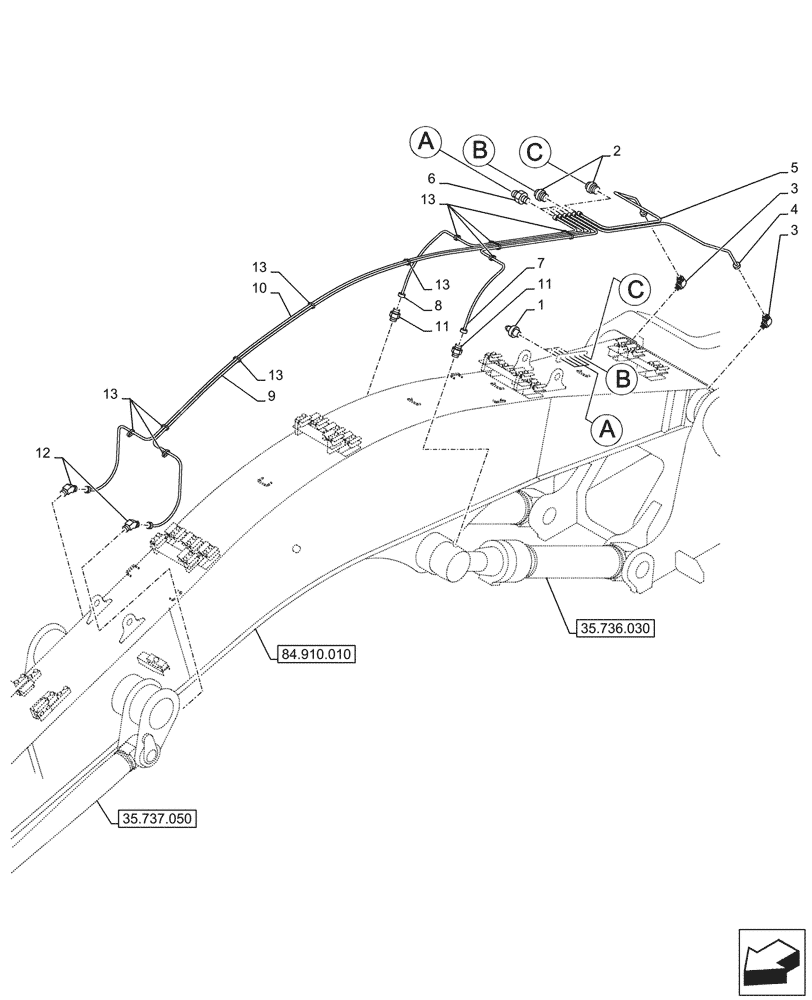

Запчасти Case CX290D LC MH (71.460.010) - BOOM, LUBRIFICATION LINE (71) - LUBRICATION SYSTEM

1

153630A1

LUBE NIPPLE

6шт.

2

152599A1

MULTIPOLE CONNECTOR

2шт.

3

152627A1

ELBOW

2шт.

4

KBV15540Y2

HYD TUBE,6 mm ID x 8 mm OD

1шт.

5

KBV15550Y2

HYD TUBE

1шт.

6

KRJ4050

ADAPTER

4шт.

7

KHJ2069

HOSE

6 x 2300mm

1шт.

8

KHJ2070

HOSE

6mm ID x 2400mm

1шт.

9

KHJ18260

HOSE

6mm ID x 4900mm

1шт.

10

KHJ18270

HOSE

6mm ID x 5000mm

1шт.

11

153603A1

ADAPTER

2шт.

12

153599A1

ADAPTER

2шт.

13

150067A1

MOUNTING CLIP

150mm

12шт.
