(55.425.020) - VAR - 461872 - PRESSURE SENSOR, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX290D LC MH (55.425.020) - VAR - 461872 - PRESSURE SENSOR, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

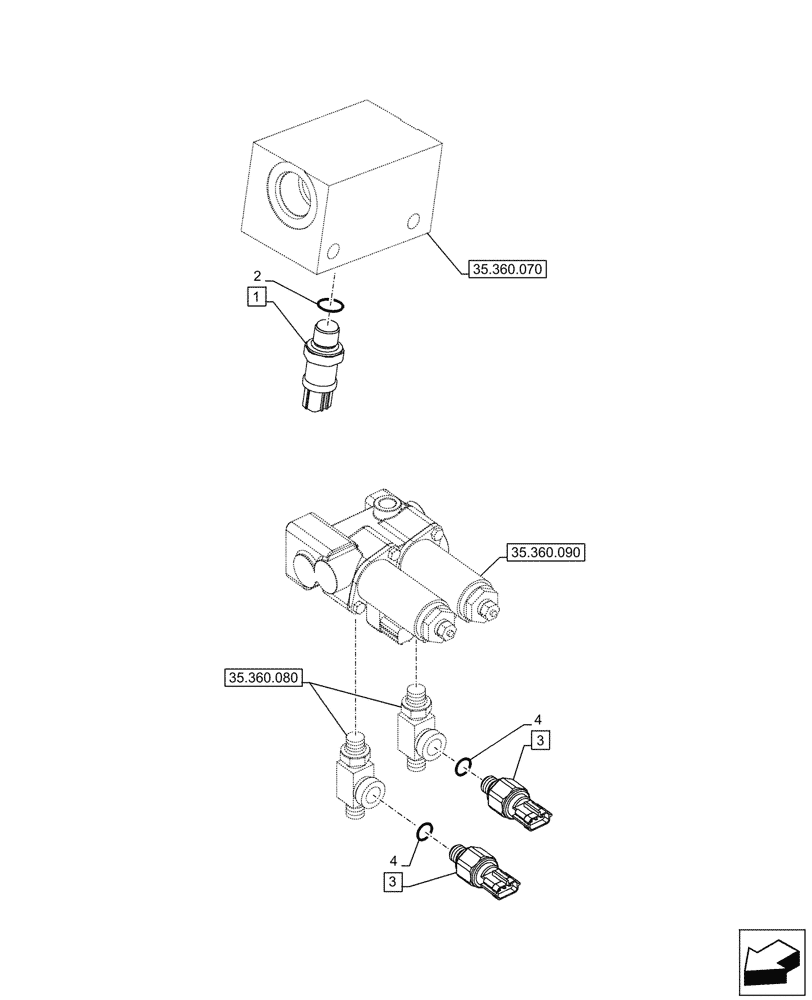

Схема запчастей Case CX290D LC MH - (55.425.020) - VAR - 461872 - PRESSURE SENSOR, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
35.360.090
1
4
3
4
3
2
35.360.070
35.360.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR41950

SENSOR

ASSY, Control Valve Pressure, Incl 2

1шт.

2

UCP0101

O-RING

1шт.

3

KHR26940

SENSOR

ASSY, 5MPa x G1/4", Incl 4

2шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

Выбрано товаров: 4
