(55.404.030) - WORKING LIGHT

Запчасти Case CX290D LC MH (55.404.030) - WORKING LIGHT (55) - ELECTRICAL SYSTEMS

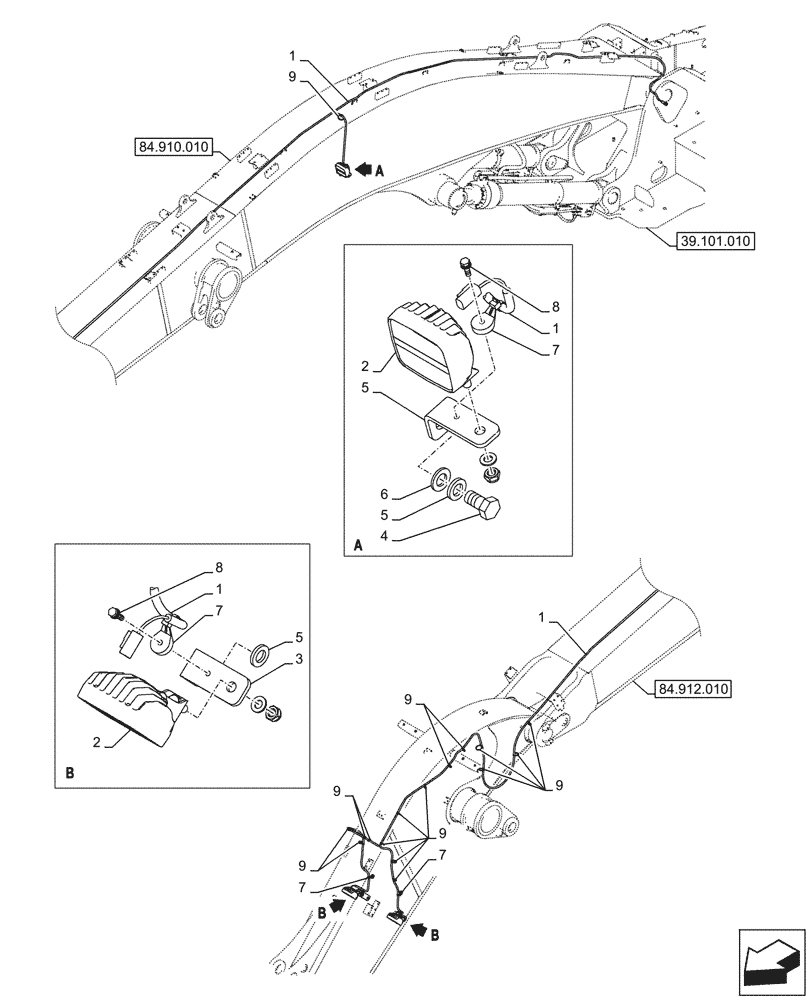

Схема запчастей Case CX290D LC MH - (55.404.030) - WORKING LIGHT (55) - ELECTRICAL SYSTEMS
84.912.010
2
3
9
1
7
1
8
1
6
9
5
9
5
9
1
9
5
8
7
9
2
7
4
7
84.910.010
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR50340

WIRE HARNESS

1шт.

2

KHR49790

LAMP

20W 1200Lm

3шт.

3

KHR49940

BRACKET

Led

3шт.

4

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

1шт.

5

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

3шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

7

KHR2583

CLAMP

5шт.

8

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

3шт.

9

150496A1

MOUNTING CLIP

250mm

16шт.
