(35.738.020) - VAR - 781930 - BUCKET CYLINDER, LINES (ARM L=3.0M)

Запчасти Case CX290D LC MH (35.738.020) - VAR - 781930 - BUCKET CYLINDER, LINES (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS

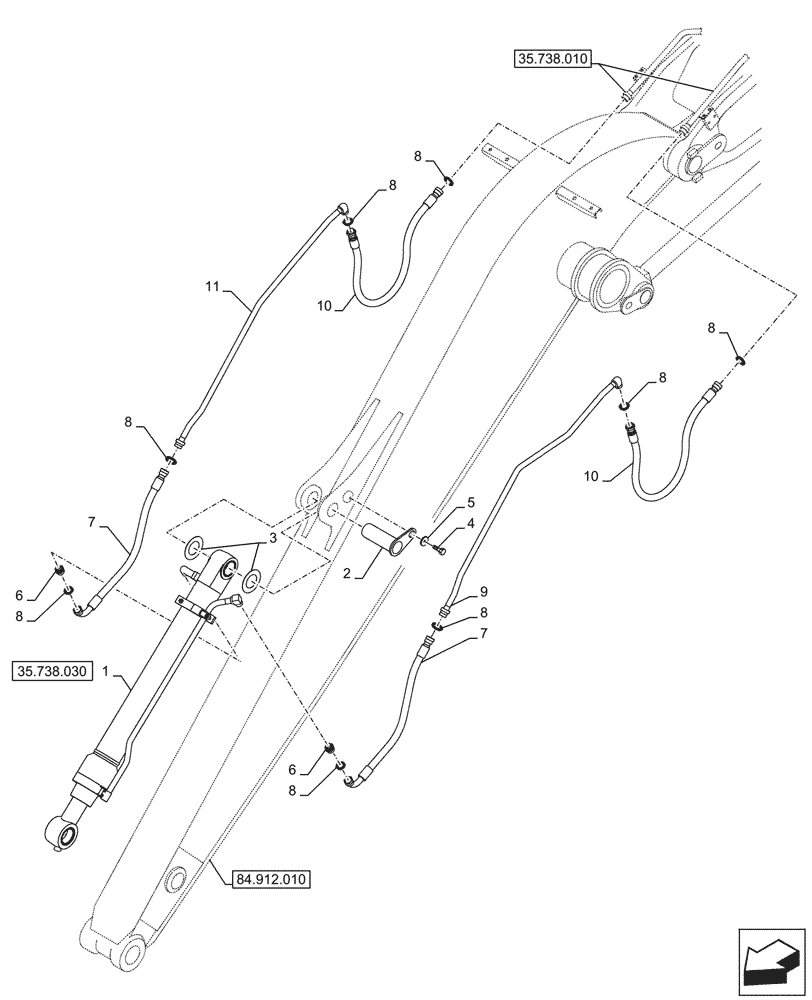

Схема запчастей Case CX290D LC MH - (35.738.020) - VAR - 781930 - BUCKET CYLINDER, LINES (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS
35.738.030
8
6
8
1
3
9
5
7
8
8
7
8
8
8
11
10
2
8
6
4
10
35.738.010
84.912.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV33010

BUCKET CYLINDER

ASSY

1шт.

2

KRV10990

PIN

1шт.

3

160452A1

SHIM

2шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

5

157141A1

WASHER

1шт.

6

KHJ15840

ADAPTER

G 3/4"

1шт.

7

KBV20250

HYDRAULIC HOSE

1шт.

8

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

9

KBV22810

PIPE

1шт.

10

KBV20240

HYDRAULIC HOSE

From Control Valve to Cylinder arm

1шт.

11

KBV22820

PIPE

1шт.

Выбрано товаров: 11
