(35.738.010) - VAR - 781930 - BUCKET CYLINDER, LINES

Запчасти Case CX290D LC MH (35.738.010) - VAR - 781930 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

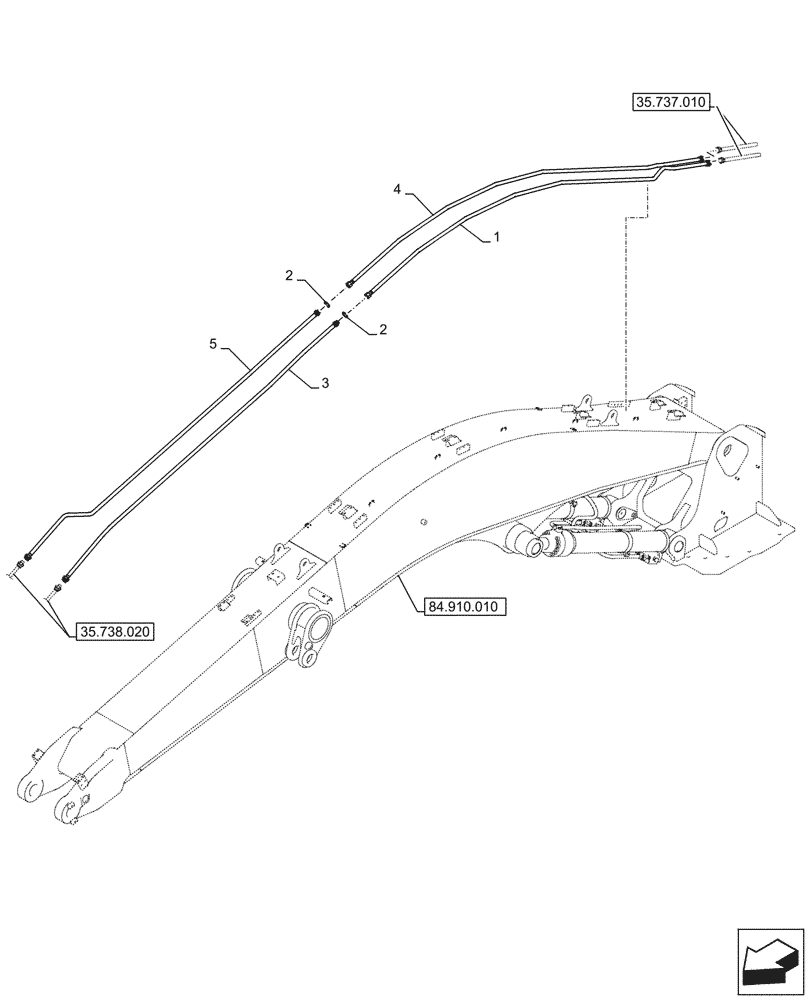

Схема запчастей Case CX290D LC MH - (35.738.010) - VAR - 781930 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
84.910.010
4
2
3
1
5
2
35.737.010
35.738.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV29240

PIPE

from Control Valve to Cylinder Arm

1шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

3

KBV20200Y2

HYD TUBE

from Control Valve to Cylinder Arm

1шт.

4

KBV29230

PIPE

from Control Valve to Cylinder Arm

1шт.

5

KBV20210Y2

HYD TUBE

from Control Valve to Cylinder Arm

1шт.
