(35.737.040) - VAR - 781930 - ARM, CYLINDER, LINES

Запчасти Case CX290D LC MH (35.737.040) - VAR - 781930 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

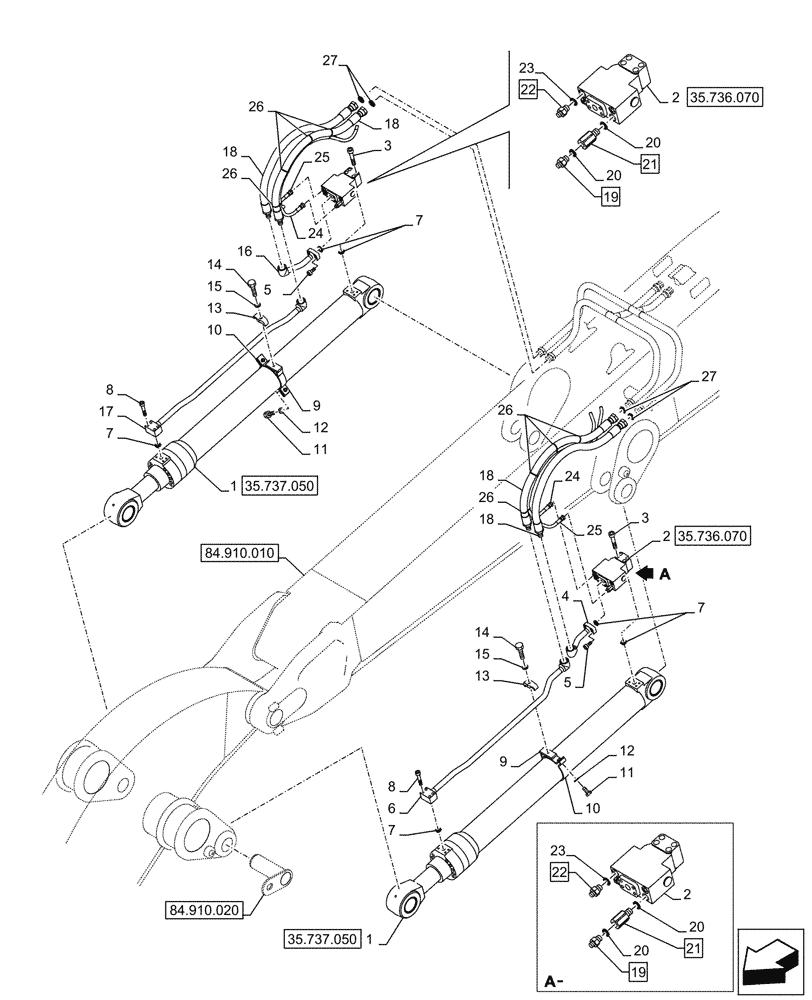

Схема запчастей Case CX290D LC MH - (35.737.040) - VAR - 781930 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
84.910.020
22
7
9
7
19
13
24
18
8
3
7
7
5
26
23
21
2
22
26
12
13
20
10
19
20
14
26
4
8
11
5
6
20
18
18
27
15
24
1
1
23
2
18
26
17
25
20
27
16
2
9
15
3
12
25
10
14
21
11
35.737.050
35.737.050
84.910.010
35.736.070
35.736.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV19470

HYDRAULIC CYLINDER

ASSY

2шт.

2

KRV11110

VALVE SECTION

ASSY

2шт.

3

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

8шт.

4

KBV20790

HYD TUBE

1шт.

5

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

6

KBV20070Y2

HYD TUBE

1шт.

7

161097A1

O-RING

6шт.

8

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

8шт.

9

KBV20091

CLAMP

2шт.

10

MFV5008

CLAMP

2шт.

11

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

12

892-11010

LOCK WASHER,M10

4шт.

13

151486A1

CLAMP BRACKET

2шт.

14

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

15

183-112VR

SPRING WASHER

2шт.

16

KBV20800

HYD TUBE

1шт.

17

KBV20080

HYD TUBE

1шт.

18

KBV20131

HYDRAULIC HOSE

From Main Control Valve to Safety Valve

4шт.

19

152747A1

ADAPTER

ASSY, Incl 20 (Qty 1)

2шт.

20

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

21

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 20 (Qty 1)

2шт.

22

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY G3/8" x G3/8", Incl 23 (Qty 1)

2шт.

23

150031A1

O-RING,10mm ID x 24mm OD

2шт.

24

166164A1

HYDRAULIC HOSE,9.50 mm ID x 1350.00 mm

From Main Control Valve to Safety Valve

2шт.

25

165782A1

HYDRAULIC HOSE,9.50 mm ID x 1400.00 mm

From Main Control Valve to Safety Valve

2шт.

26

150067A1

MOUNTING CLIP

150mm

7шт.

27

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.
