(35.737.030) - VAR - 781930 - ARM, CYLINDER, LINES

Запчасти Case CX290D LC MH (35.737.030) - VAR - 781930 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

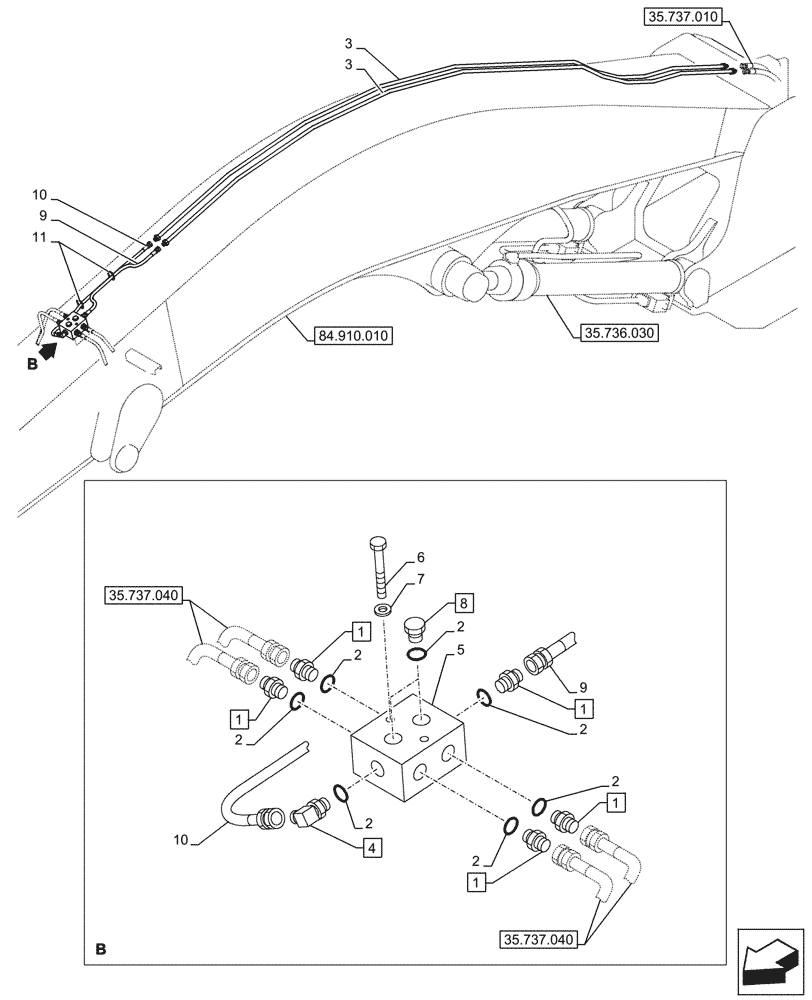

Схема запчастей Case CX290D LC MH - (35.737.030) - VAR - 781930 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
84.910.010
1
6
7
1
10
3
5
2
2
8
3
2
11
2
9
10
1
1
2
2
9
1
4
2
35.736.030
35.737.010
35.737.040
35.737.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY G3/8" x G3/8", Incl 2 (Qty 1)

7шт.

2

150031A1

O-RING,10mm ID x 24mm OD

10шт.

3

KBV30120

PIPE

From Main Control Valve to Safety Valve

2шт.

4

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

ASSY, G3/8 x G3/8, Incl 2 (Qty 1)

1шт.

5

KRJ4384

MANIFOLD

1шт.

6

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

7

150409A1

WASHER

M12

2шт.

8

153105A1

PLUG

ASSY, Incl 2 (Qty 1)

2шт.

9

KMJ2037

HYDRAULIC HOSE

From Main Control Valve to Safety Valve

1шт.

10

KHJ1142

HYDRAULIC HOSE

From Main Control Valve to Safety Valve

1шт.

11

150067A1

MOUNTING CLIP

150mm

2шт.
