(35.737.020) - VAR - 781930 - ARM, CYLINDER, LINES

Запчасти Case CX290D LC MH (35.737.020) - VAR - 781930 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

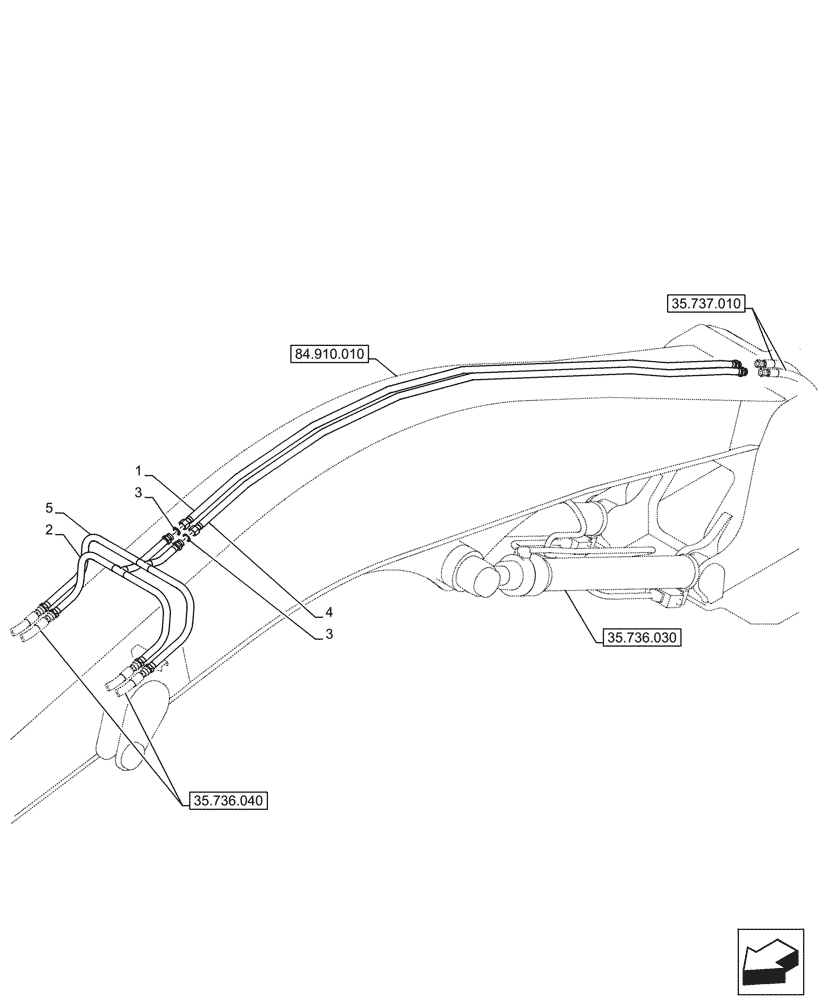

Схема запчастей Case CX290D LC MH - (35.737.020) - VAR - 781930 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.736.040
3
1
4
2
3
5
35.736.030
35.737.010
35.737.010
84.910.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV29260

PIPE

From Main Control Valve to Arm Cylinder

1шт.

2

KBV20170Y2

HYD TUBE

From Main Control Valve to Arm Cylinder

1шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

4

KBV29250

PIPE

From Main Control Valve to Arm Cylinder

1шт.

5

KBV20160Y2

HYD TUBE

From Main Control Valve to Arm Cylinder

1шт.
