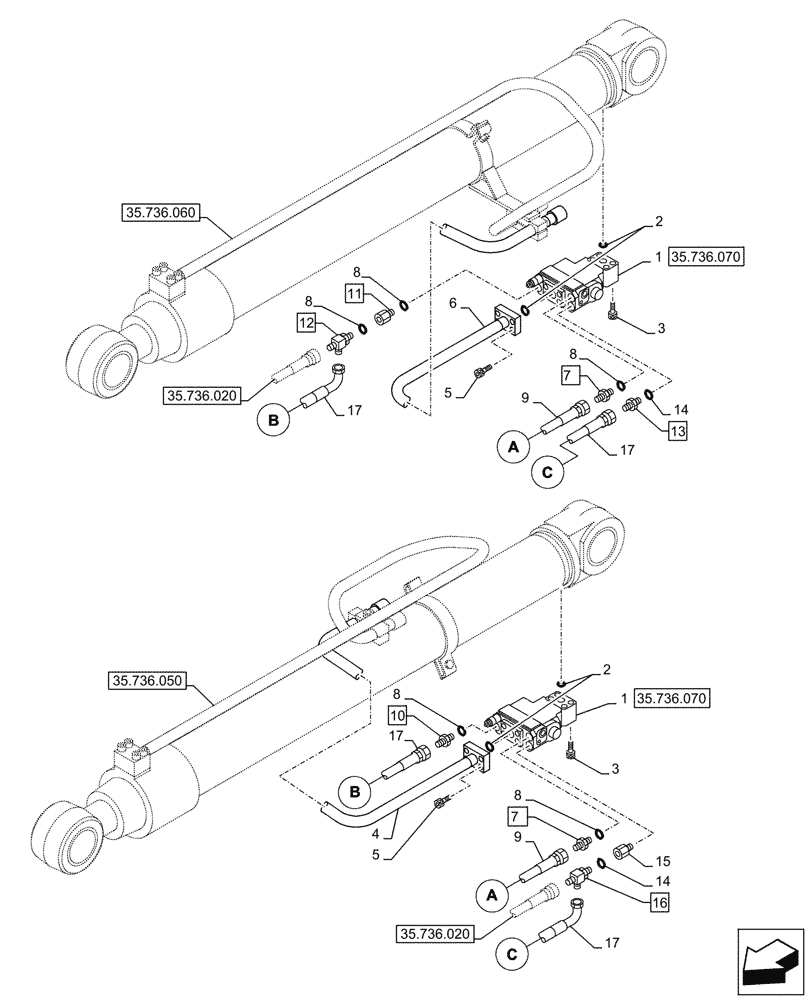

Запчасти Case CX290D LC MH (35.736.040) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

KRV11110

VALVE SECTION

ASSY

2шт.

2

161097A1

O-RING

4шт.

3

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

8шт.

4

KBV19910Y2

HYD TUBE

1шт.

5

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

6

KBV19920Y2

HYD TUBE

1шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 8 (Qty 1)

2шт.

8

150960A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

9

KLV11950

HOSE ASSY.

1500mm

1шт.

10

152747A1

ADAPTER

ASSY, Incl 8 (Qty 1)

1шт.

11

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 8 (Qty 1)

2шт.

12

162827A1

TEE

G1/4" x G3/8" x G3/8", ASSY, Incl 8 (Qty 1)

1шт.

13

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY G3/8" x G3/8", Incl 14 (Qty 1)

1шт.

14

150031A1

O-RING,10mm ID x 24mm OD

2шт.

15

KHV0373

STUD

G3/8" x G3/8" x 42mm

1шт.

16

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, G3/8", Incl 14 (Qty 1)

1шт.

17

KHJ1063

HYDRAULIC HOSE,9.52 mm ID x 1500.00 mm

From Safety Valve to Safety Valve

2шт.
