(35.736.030) - VAR - 481064 - LIFT CYLINDER, BOOM, SAFETY VALVE, MOUNTING

Запчасти Case CX290D LC MH (35.736.030) - VAR - 481064 - LIFT CYLINDER, BOOM, SAFETY VALVE, MOUNTING (35) - HYDRAULIC SYSTEMS

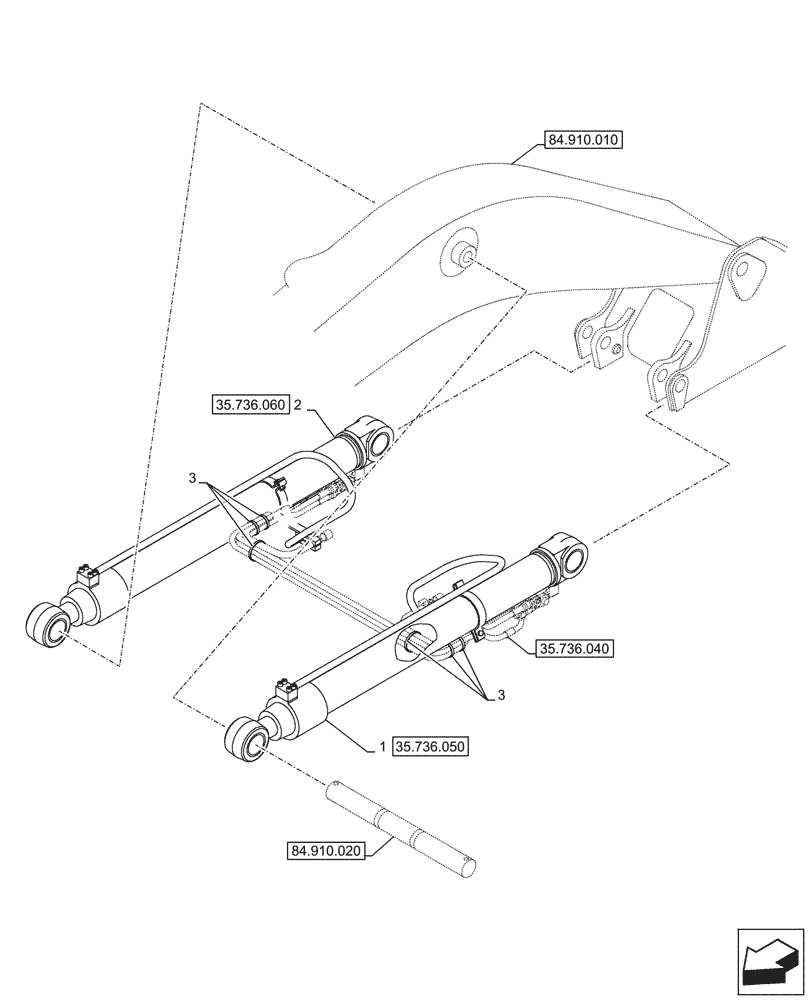

Схема запчастей Case CX290D LC MH - (35.736.030) - VAR - 481064 - LIFT CYLINDER, BOOM, SAFETY VALVE, MOUNTING (35) - HYDRAULIC SYSTEMS
84.910.020
1
3
2
3
84.910.010
35.736.050
35.736.040
35.736.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV26870

HYDRAULIC CYLINDER

ASSY

1шт.

2

KBV19450

HYDRAULIC CYLINDER

ASSY

1шт.

3

150071A1

MOUNTING CLIP

380mm

6шт.

Выбрано товаров: 3
