(35.360.110) - VAR - 461872 - ARM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX290D LC MH (35.360.110) - VAR - 461872 - ARM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

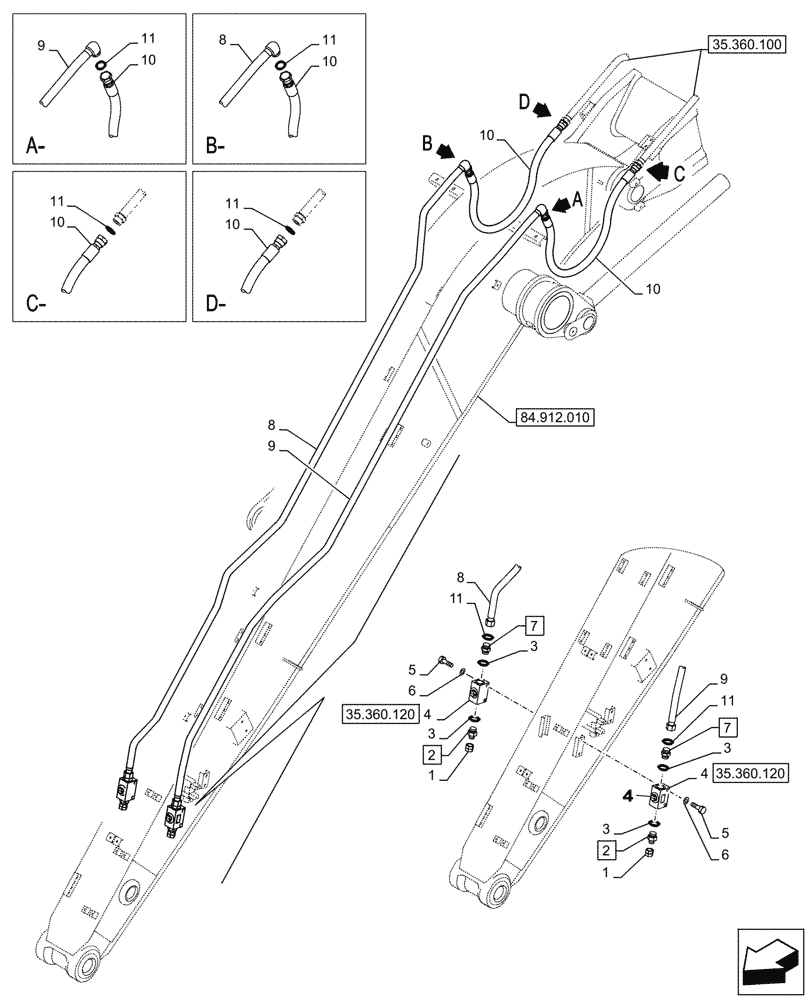

Схема запчастей Case CX290D LC MH - (35.360.110) - VAR - 461872 - ARM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
84.912.010
10
2
6
2
11
1
10
10
3
11
9
4
5
8
11
11
10
3
11
4
10
1
9
6
3
10
8
8
7
5
3
7
9
11
35.360.100
35.360.120
35.360.120
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

153683A1

PLUG

G3/4"

2шт.

2

169040A1

ADAPTER

ASSY, G1" x G3/4", Incl 3 (Qty 1)

2шт.

3

152211A1

O-RING

4шт.

4

KHV10430

SHUT-OFF VALVE

ASSY

2шт.

See also Figure 35.360.120

1шт.

5

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

4шт.

6

150811A1

WASHER

4шт.

7

KHJ1349

ADAPTER

ASSY, Incl 3 (Qty 1)

2шт.

8

KBV22840

PIPE

From Control Valve to Stop Valve

1шт.

9

KBV22830

PIPE

From Control Valve to Stop Valve

1шт.

10

KRV22261

HOSE ASSY.

25mm ID x 1300mm, From Control Valve to Stop Valve

2шт.

11

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.
