(35.360.090) - VAR - 461872 - SOLENOID VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX290D LC MH (35.360.090) - VAR - 461872 - SOLENOID VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

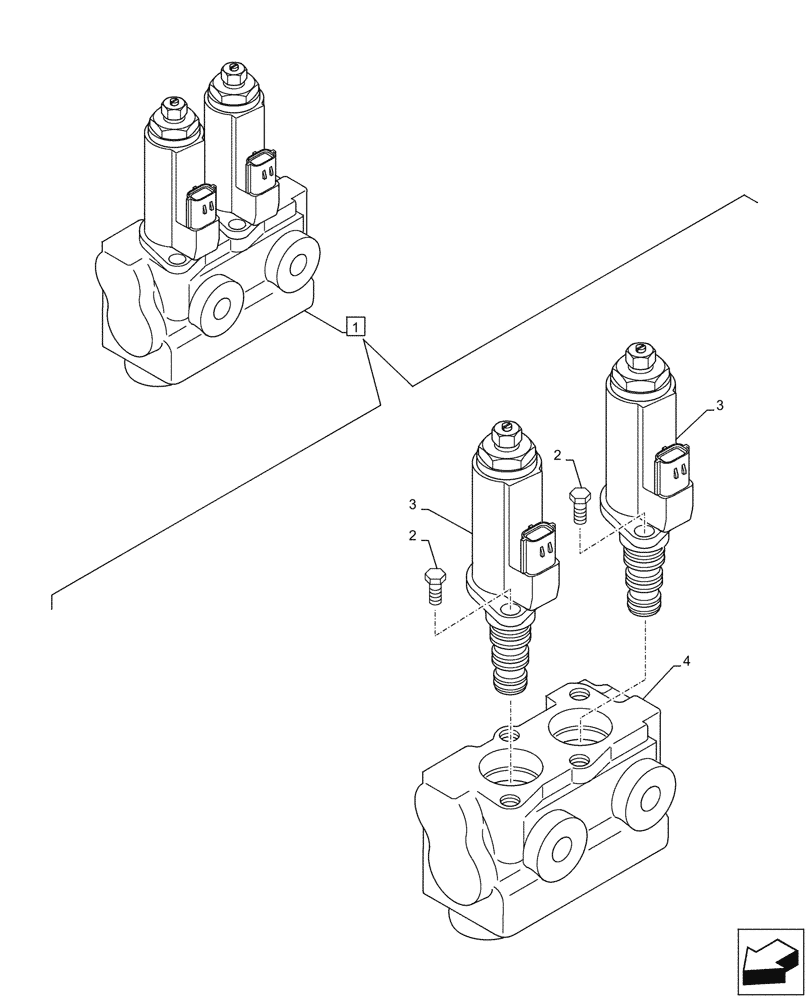

Схема запчастей Case CX290D LC MH - (35.360.090) - VAR - 461872 - SOLENOID VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
4
3
2
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MFJ71500

VALVE SECTION

ASSY

1шт.

2

102R005Y012R

BOLT

M5 x 12mm

4шт.

3

LJ017960

VALVE

2шт.

4

LW005920

BODY

1шт.
