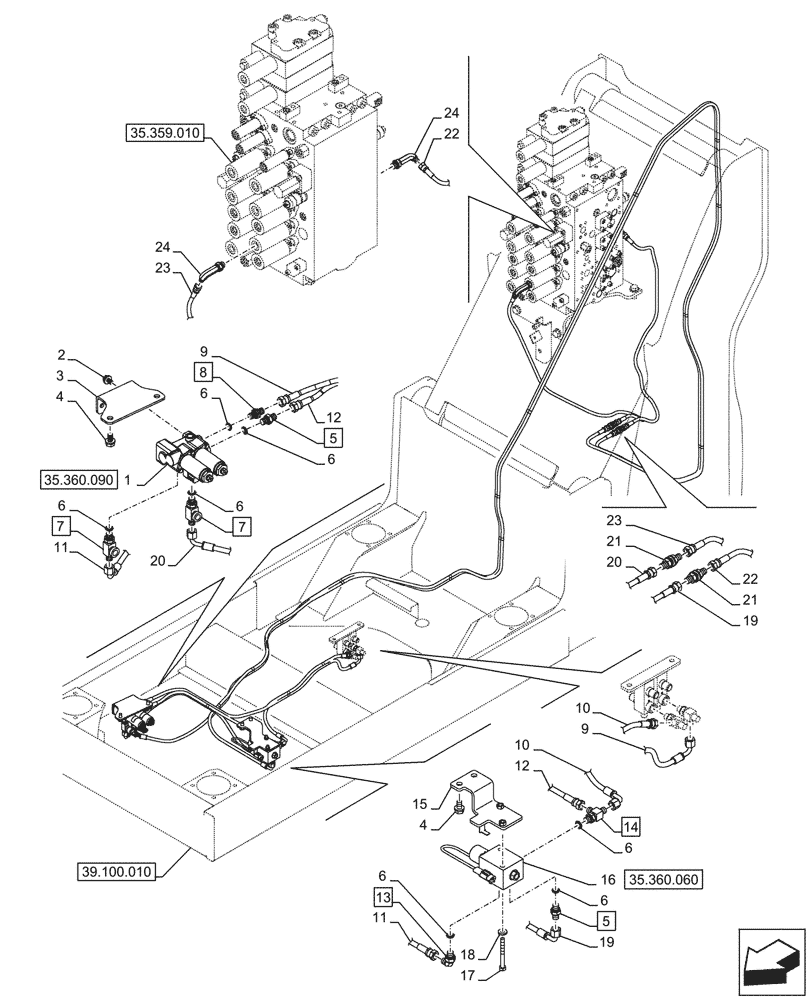

Запчасти Case CX290D LC MH (35.360.080) - VAR - 461872 - HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

MFJ71500

VALVE SECTION

ASSY

1шт.

See also Figure 35.360.130

1шт.

2

166345A1

BOLT

M8 x 16mm

2шт.

3

KHJ28770

BRACKET

1шт.

4

166351A1

BOLT,Sems, M10 x 20mm

4шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 6 (Qty 1)

2шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

7

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4", Incl 6 (Qty 1)

2шт.

8

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 6 (Qty 1)

1шт.

9

KHJ2093

HOSE

6mm ID x 1150mm, From Drain Block Valve to Solenoid Valve

1шт.

10

KHJ2086

HOSE,6.3mm ID x 700mm L

From Drain Block Valve to Solenoid Valve

1шт.

11

KHJ2036

HOSE

6mm ID x 750mm, From Solenoid Valve to Solenoid Valve

1шт.

12

KHJ2047

HOSE

6mm ID x 650mm, From Solenoid Valve to Solenoid Valve

1шт.

13

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 6 (Qty 1)

1шт.

14

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 6 (Qty 1)

1шт.

15

KHJ34631

BRACKET

1шт.

16

KHJ34840

VALVE

1шт.

17

102R008Y075R

BOLT

M8 x 75mm

2шт.

18

153081A1

WASHER

2шт.

19

KHJ27580

HYDRAULIC HOSE

From Main Control Valve to Solenoid Valve

1шт.

20

KHJ27600

HYDRAULIC HOSE

From Main Control Valve to Solenoid Valve

1шт.

21

159481A1

ADAPTER

2шт.

22

KHJ2052

HOSE

6mm ID x 1100mm, From Main Control Valve to Solenoid Valve

1шт.

23

KHJ2051

HOSE

6mm ID x 1050mm, From Main Control Valve to Solenoid Valve

1шт.

24

KHJ28880

ELBOW

G3/8" x G1/4" x 75mm

2шт.
