(35.360.070) - VAR - 461872 - HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX290D LC MH (35.360.070) - VAR - 461872 - HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

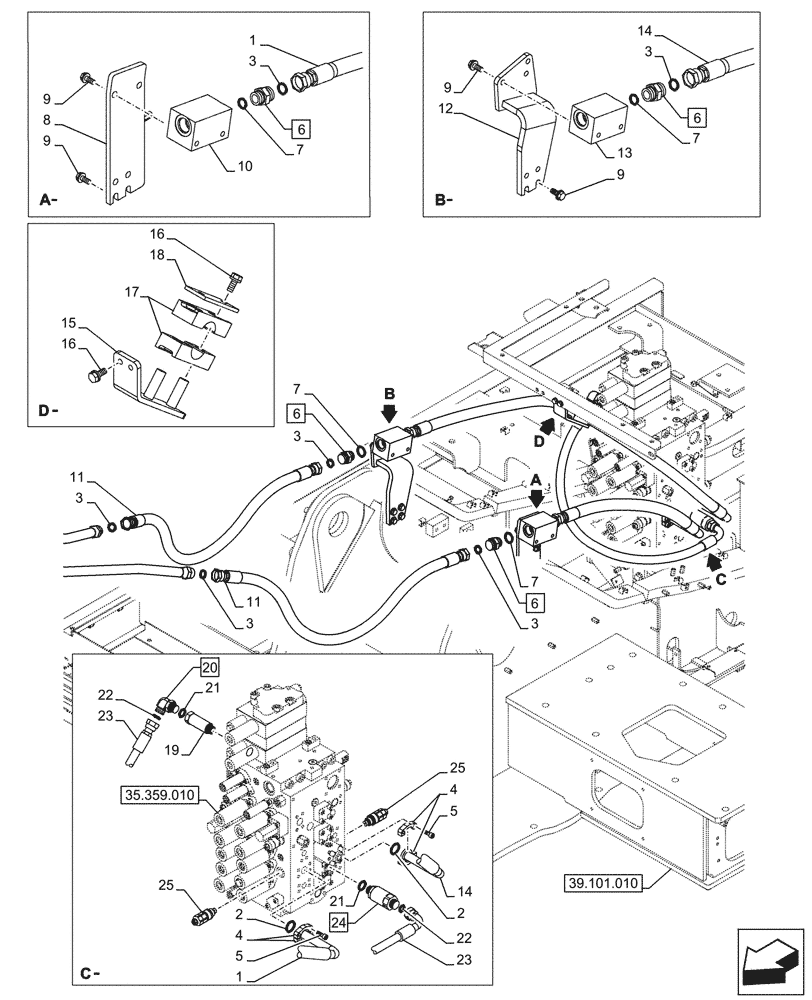

Схема запчастей Case CX290D LC MH - (35.360.070) - VAR - 461872 - HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.359.010
15
7
7
2
5
23
9
22
8
11
23
17
3
6
13
10
4
14
3
6
6
16
21
1
22
4
25
14
7
12
21
11
25
20
7
9
2
16
3
9
6
24
18
3
9
19
1
3
3
5
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ22370

HYDRAULIC HOSE

890mm, From Main Control Valve to Maniold Valve

1шт.

2

162246A1

O-RING

2шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

4

153459A1

FLANGE

4шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

6

KHJ1349

ADAPTER

ASSY, Incl 7

4шт.

7

152211A1

O-RING

4шт.

8

KBJ25990

BRACKET

1шт.

9

166352A1

BOLT

M12 x 30mm

12шт.

10

KBJ26000

MANIFOLD

1шт.

11

KRJ11510

HYDRAULIC HOSE,25.40 mm ID x 1360.00 mm

From Manifold Valve to Stop Valve

2шт.

12

KRJ16050

SUPPORT

1шт.

13

KRJ12170

MANIFOLD VALVE

1шт.

14

KBJ25930

HYDRAULIC HOSE

1620mm, From Main Control Valve to Maniold Valve

1шт.

15

KBJ19820

BRACKET

1шт.

16

166052A1

BOLT

M10 x 25mm

4шт.

17

KRJ11450

HOSE CLIP

38mm

2шт.

18

KRJ10800

PLATE

1шт.

19

KHJ26310

STUD

1шт.

20

KHJ1804

ELBOW

ASSY, Incl 21 (Qty 1)

1шт.

21

150542A1

O-RING

2шт.

22

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

23

KBJ19810

HYDRAULIC HOSE

19mm ID x 1200mm

1шт.

24

KHJ10480

VALVE SECTION

ASSY, Incl 21 (Qty 1)

1шт.

25

158257A1

VALVE, PRESSURE RELI

2шт.
