(35.360.060) - VAR - 461872 - SOLENOID VALVE, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX290D LC MH (35.360.060) - VAR - 461872 - SOLENOID VALVE, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

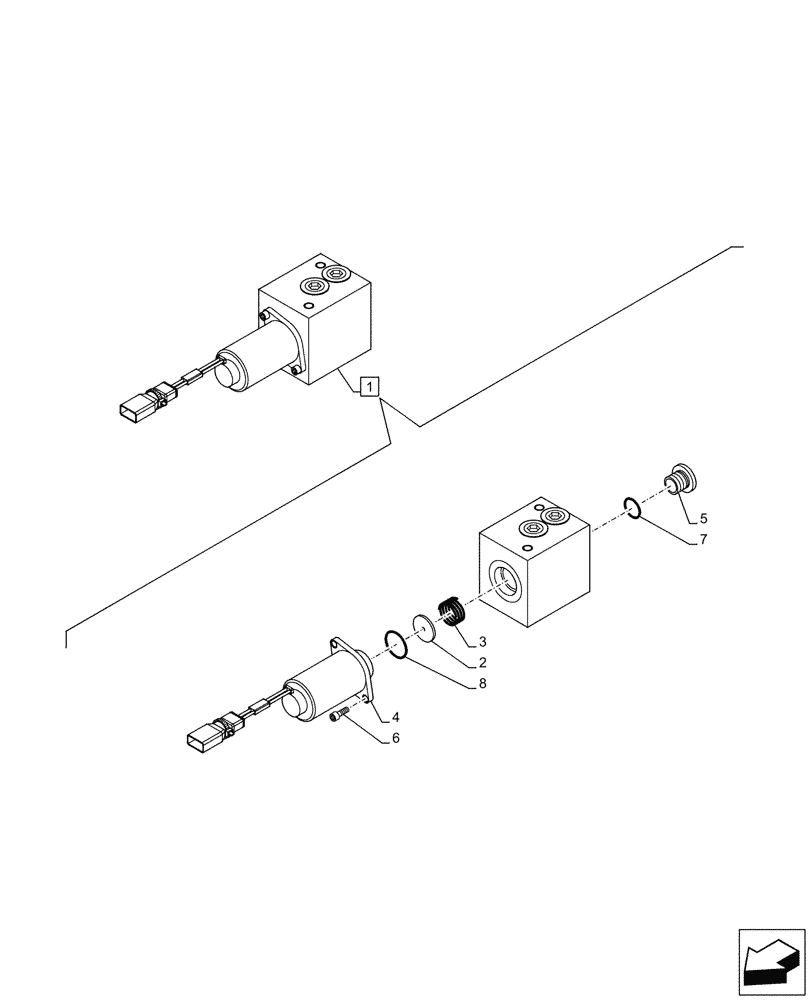

Схема запчастей Case CX290D LC MH - (35.360.060) - VAR - 461872 - SOLENOID VALVE, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
7
1
5
3
6
8
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ34840

VALVE

ASSY, Incl 2 - 8

1шт.

2

LH007910

SHIM

1шт.

3

LG008890

SPRING COMPRESSOR

1шт.

4

LL00080

SOLENOID

1шт.

5

LK00339

PLUG

1шт.

6

LA00690

BOLT,Hex Skt Hd

M5 x 12mm

2шт.

7

LE00503

O-RING

1шт.

8

LE00852

O-RING

1шт.

Выбрано товаров: 8
