(35.360.040) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX290D LC MH (35.360.040) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

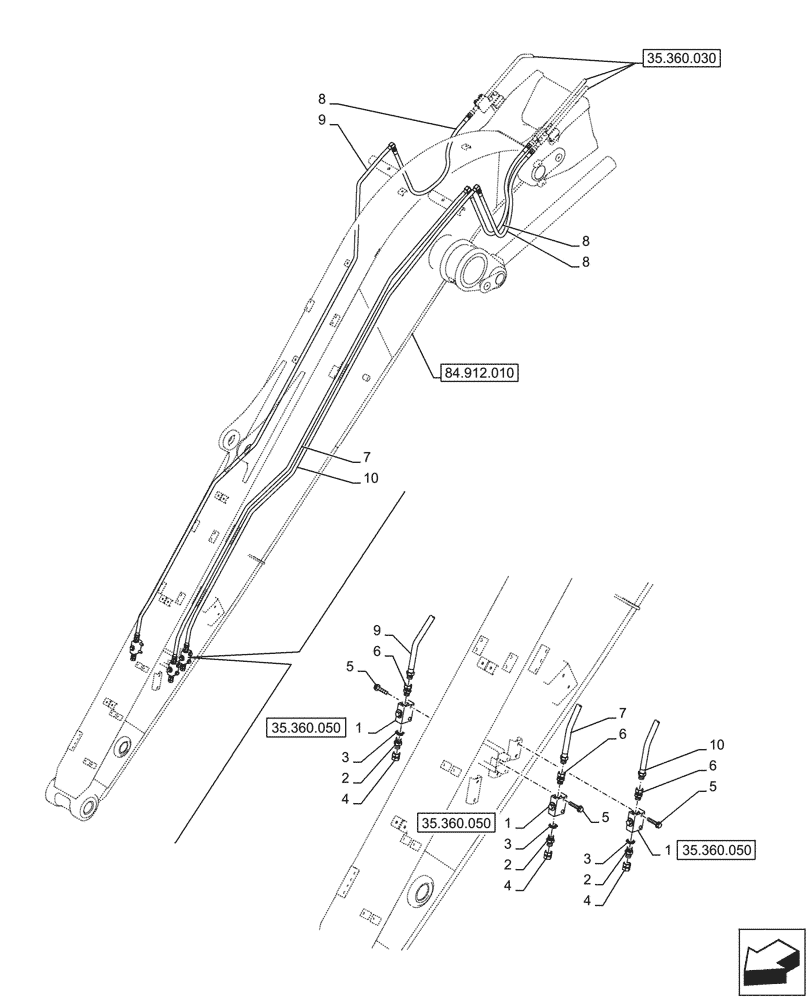

Схема запчастей Case CX290D LC MH - (35.360.040) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.050
3
2
6
3
4
10
6
10
5
2
1
8
9
1
6
5
5
9
1
4
8
4
7
7
3
2
8
35.360.030
84.912.010
35.360.050
35.360.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHV10440

VALVE

3шт.

2

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2", Incl 3

3шт.

3

150539A1

O-RING

3шт.

4

158841A1

PLUG

G1/2"

3шт.

5

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

6

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

7

KBV22850

PIPE

From Main Control valve to Stop Valve

1шт.

8

KEV0299

HYDRAULIC HOSE

L=1260mm, From Main Control valve to Stop Valve

3шт.

9

KBV22860

PIPE

From Main Control valve to Stop Valve

1шт.

10

KBV22870

PIPE

From Main Control valve to Stop Valve

1шт.
