(90.160.AS[03]) - VAR - 461863 - FOOT BOARD, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC LR (90.160.AS[03]) - VAR - 461863 - FOOT BOARD, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS

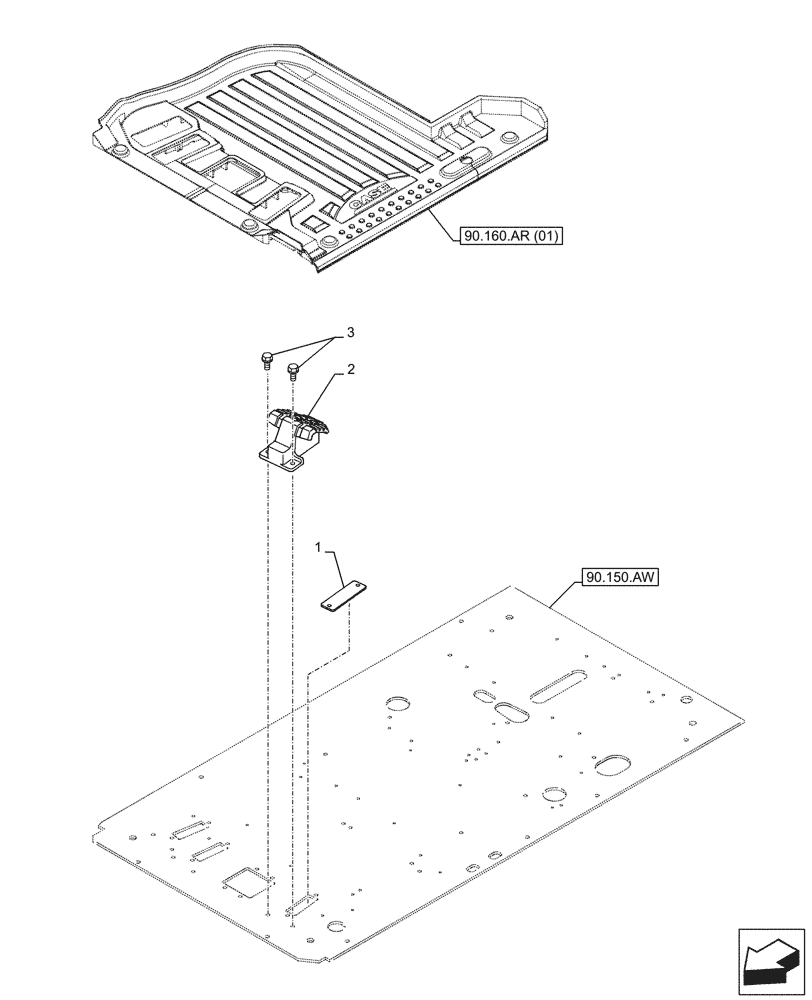

Схема запчастей Case CX250D LC LR - (90.160.AS[03]) - VAR - 461863 - FOOT BOARD, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.aw
1
3
2
90.160.ar (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ14550

GROMMET

1шт.

2

KHJ13860

FOOTREST

1шт.

3

166052A1

BOLT

M10 x 25mm

2шт.
