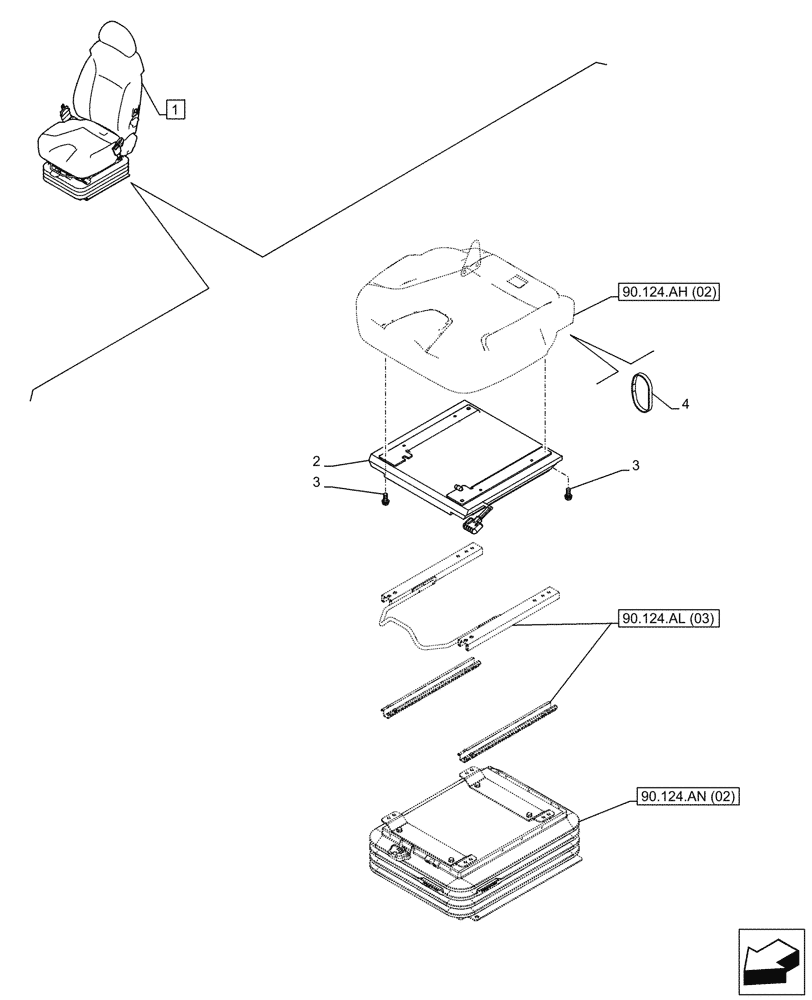

Запчасти Case CX250D LC LR (90.124.AO) - VAR - 488035 - SEAT, AIR SUSPENSION, HANDLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN35630

DRIVER SEAT

ASSY, Incl 2 - 4, Serial Range: -C0180

1шт.

See also Figure 90.124.AF (02), 90.124.AH (02), 90.124.AL (03), 90.124.AN (02), 90.124.AE(02), 90.151.AD (02)

1шт.

1

KHN42800

DRIVER SEAT

ASSY, Incl 2 - 4, Serial Range: D0180-C0181

1шт.

1

KHN42801

DRIVER SEAT

ASSY, Incl 2 - 4, Start Serial: D0181

1шт.

2

KHN43080

KIT

1шт.

3

KHN40220

BOLT

12шт.

4

KHN45020

BAND

1шт.
