(90.105.CT) - VAR - 461555 - CAB, DEFLECTOR

Запчасти Case CX250D LC LR (90.105.CT) - VAR - 461555 - CAB, DEFLECTOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

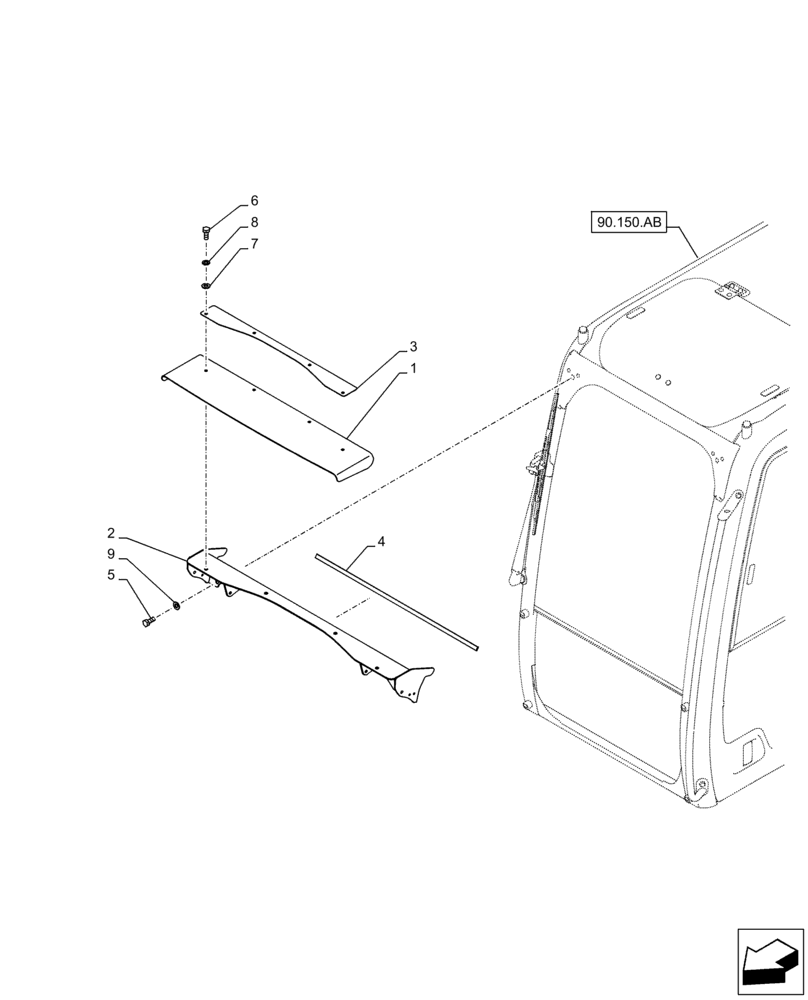

Схема запчастей Case CX250D LC LR - (90.105.CT) - VAR - 461555 - CAB, DEFLECTOR (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
2
90.150.ab
5
1
9
7
3
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN26780

DEFLECTOR

1шт.

2

KHN26791

BRACKET, SUPPORTING

, Serial Range: -C0205

1шт.

2

KHN26792

BRACKET, SUPPORTING

, Start Serial: D0205

1шт.

3

KHN26800

HOLDER

1шт.

4

KHJ13590

SEAL

1шт.

5

166351A1

BOLT,Sems, M10 x 20mm

, Serial Range: -C0205

4шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

, Start Serial: D0205

4шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

8

183-108VR

SPRING WASHER

4шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
