(90.105.BV[17]) - VAR - 481027 - HOUSING & COVERS, INSULATION, TROPICAL COOLING PACKAGE

Запчасти Case CX250D LC LR (90.105.BV[17]) - VAR - 481027 - HOUSING & COVERS, INSULATION, TROPICAL COOLING PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

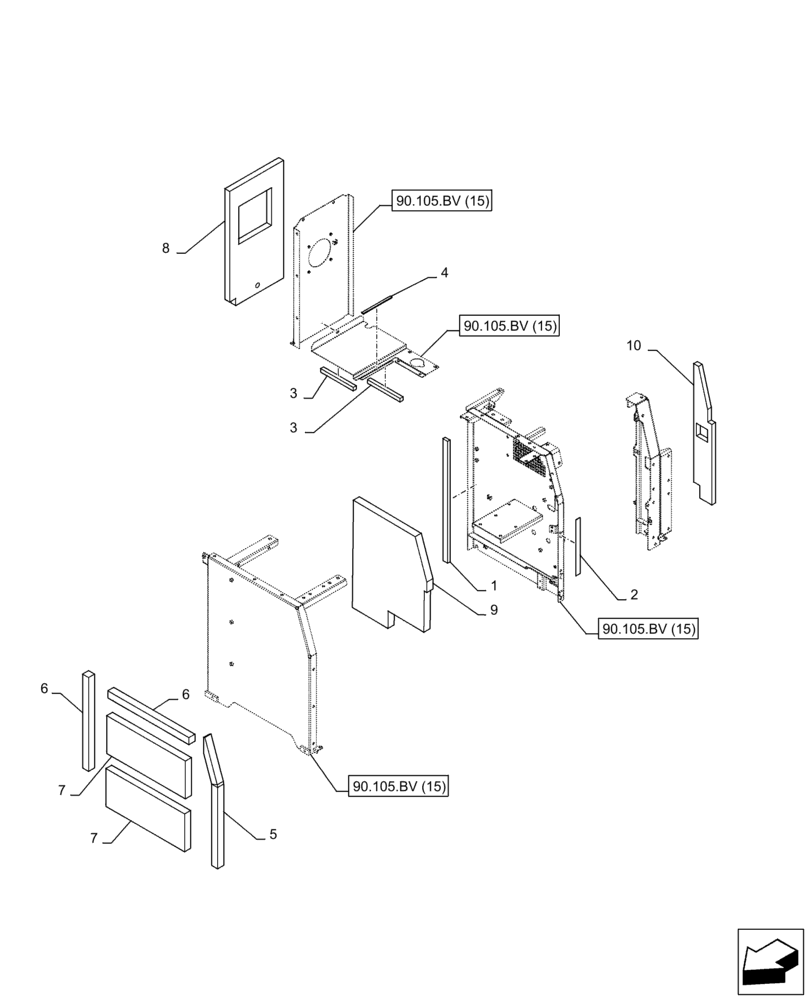

Схема запчастей Case CX250D LC LR - (90.105.BV[17]) - VAR - 481027 - HOUSING & COVERS, INSULATION, TROPICAL COOLING PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
90.105.bv (15)
8
6
1
3
7
7
90.105.bv (15)
4
2
5
90.105.bv (15)
9
90.105.bv (15)
10
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN16660

SEAL

1шт.

2

160760A1

GROMMET

1шт.

3

KBN16760

SEAL PROTECTION

2шт.

4

KNN11350

SEAL

1шт.

5

KBN16770

SEAL

1шт.

6

KRN22560

NOISE PROTECTION

2шт.

7

KRN22400

NOISE PROTECTION

2шт.

8

KBN19920

INSULATION

1шт.

9

KBN19560

INSULATION

1шт.

10

KBN19990

SEAL

1шт.
