(90.105.BV[05]) - COVER, CUSHION, VALVE

Запчасти Case CX250D LC LR (90.105.BV[05]) - COVER, CUSHION, VALVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

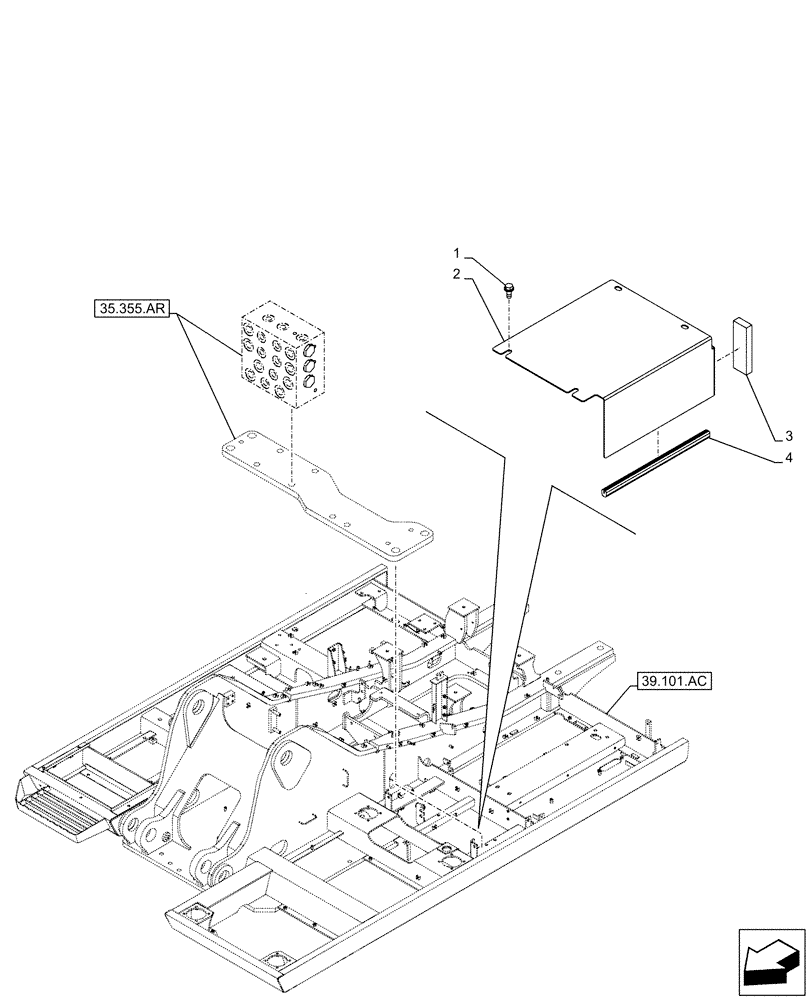

Схема запчастей Case CX250D LC LR - (90.105.BV[05]) - COVER, CUSHION, VALVE (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
1
35.355.ar
39.101.ac
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

166350A1

BOLT

M8 x 20mm

4шт.

2

KBJ22190

COVER

1шт.

3

KBJ19340

SEAL

1шт.

4

AWJ10170

SEAL PROTECTION

280mm

1шт.
