(90.105.BV[02]) - TOP COVER, PLATE, STANDARD

Запчасти Case CX250D LC LR (90.105.BV[02]) - TOP COVER, PLATE, STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

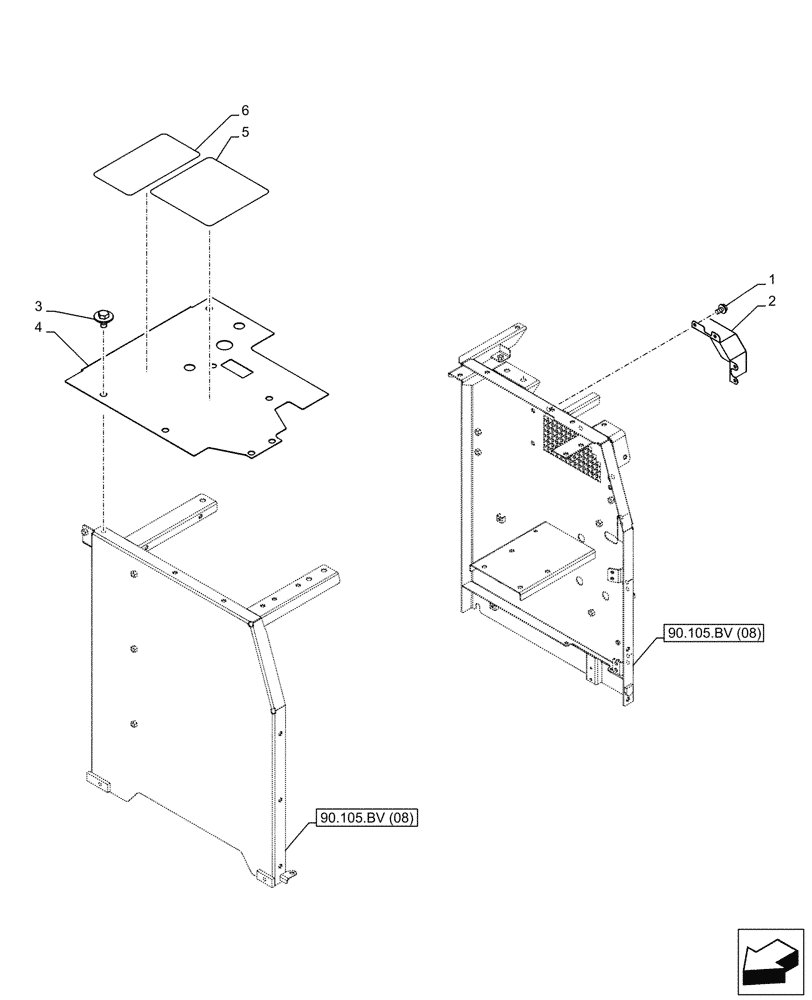

Схема запчастей Case CX250D LC LR - (90.105.BV[02]) - TOP COVER, PLATE, STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.105.bv (08)
2
5
1
6
3
4
90.105.bv (08)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

2

KBN19801

COVER

1шт.

3

KHN12020

BOLT,Spcl

6шт.

4

KBN19610

COVER

1шт.

5

KHP1259

ANTI-SKID STRIP

1шт.

6

KHP27360

ANTI-SKID STRIP

1шт.
