(90.100.AU[03]) - VAR - 481027 - ENGINE HOOD, TROPICAL COOLING PACKAGE

Запчасти Case CX250D LC LR (90.100.AU[03]) - VAR - 481027 - ENGINE HOOD, TROPICAL COOLING PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

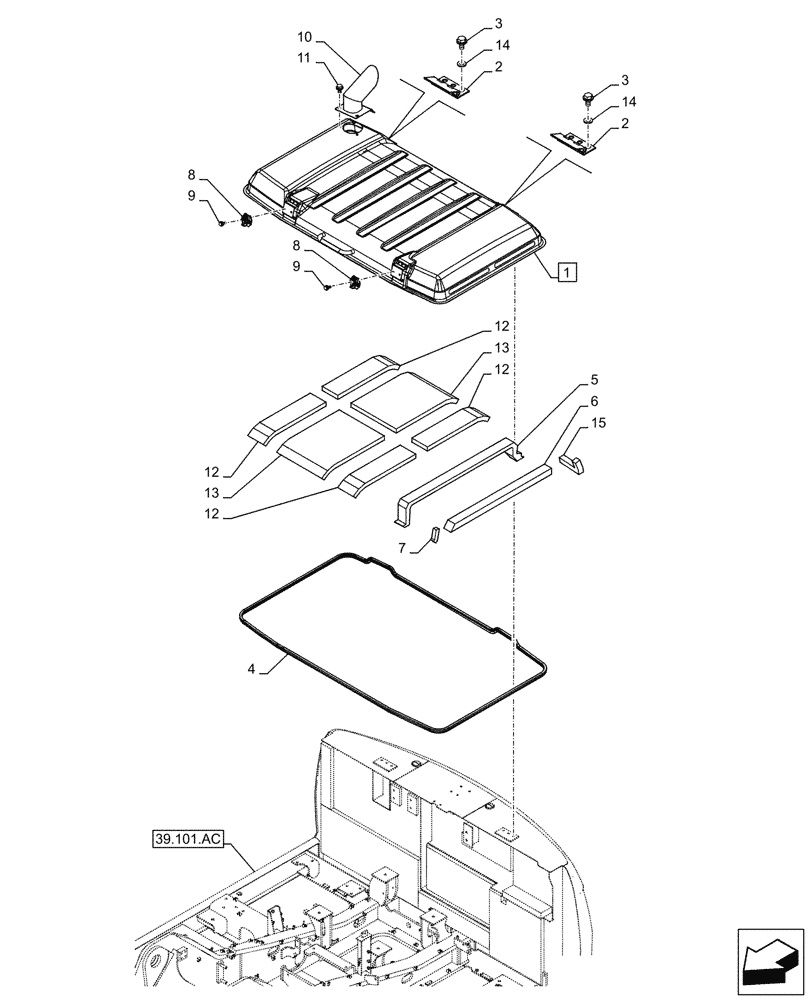

Схема запчастей Case CX250D LC LR - (90.100.AU[03]) - VAR - 481027 - ENGINE HOOD, TROPICAL COOLING PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac
8
11
12
4
6
7
5
15
14
2
12
3
9
10
14
1
2
9
13
12
12
13
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN19770G1

ENGINE HOOD

ASSY, Incl 2

1шт.

2

KHN35200

HINGE

2шт.

3

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

6шт.

4

KHN35810

TRIM

1шт.

5

KBN17030

SEAL

1шт.

6

KBN20070

SEAL

1шт.

7

KRH15730

INSULATION

1шт.

8

150785A1

STOP LOCK

2шт.

9

167182A1

BOLT,Sems, M8 x 25mm

4шт.

10

KBN19510

EXHAUST SYSTEM PIPE

1шт.

11

KHN39330

BOLT

, Serial Range: -C0182

4шт.

11

KHN39331

BOLT

, Start Serial: D0182

4шт.

12

KBN19460

INSULATION

4шт.

13

KBN19480

INSULATION

2шт.

14

150811A1

WASHER

6шт.

15

KBN19470

INSULATION

1шт.
