(88.100.55[21]) - DIA KIT, RIGHT, SIDE CAMERA, COVER

Запчасти Case CX250D LC LR (88.100.55[21]) - DIA KIT, RIGHT, SIDE CAMERA, COVER (88) - ACCESSORIES

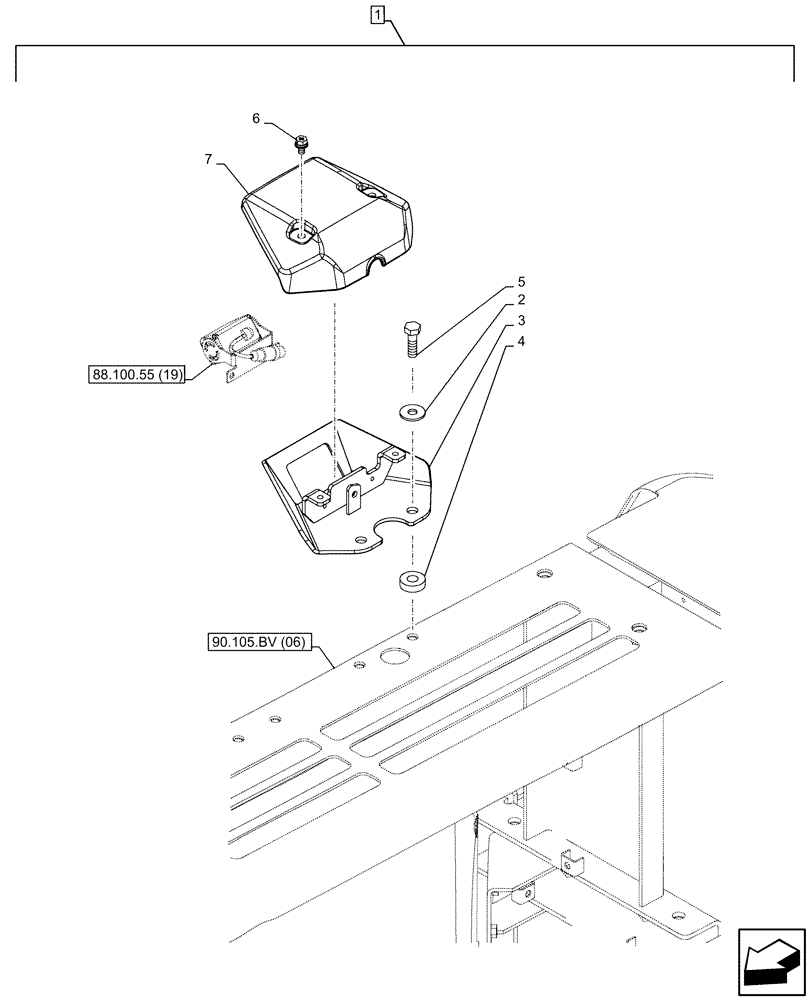

Схема запчастей Case CX250D LC LR - (88.100.55[21]) - DIA KIT, RIGHT, SIDE CAMERA, COVER (88) - ACCESSORIES
5
4
88.100.55 (19)
1
2
7
6
3
90.105.bv (06)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0RR844-00

CONSTRUCTION DIA

Right Side Camera, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150861A1

WASHER

2шт.

3

KHR40230B1

BRACKET

1шт.

4

KHR40260B1

SPACER

2шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

6

KHN2308

SCREW

M8 x 16mm

2шт.

7

KHR39570

COVER

1шт.

Выбрано товаров: 8
