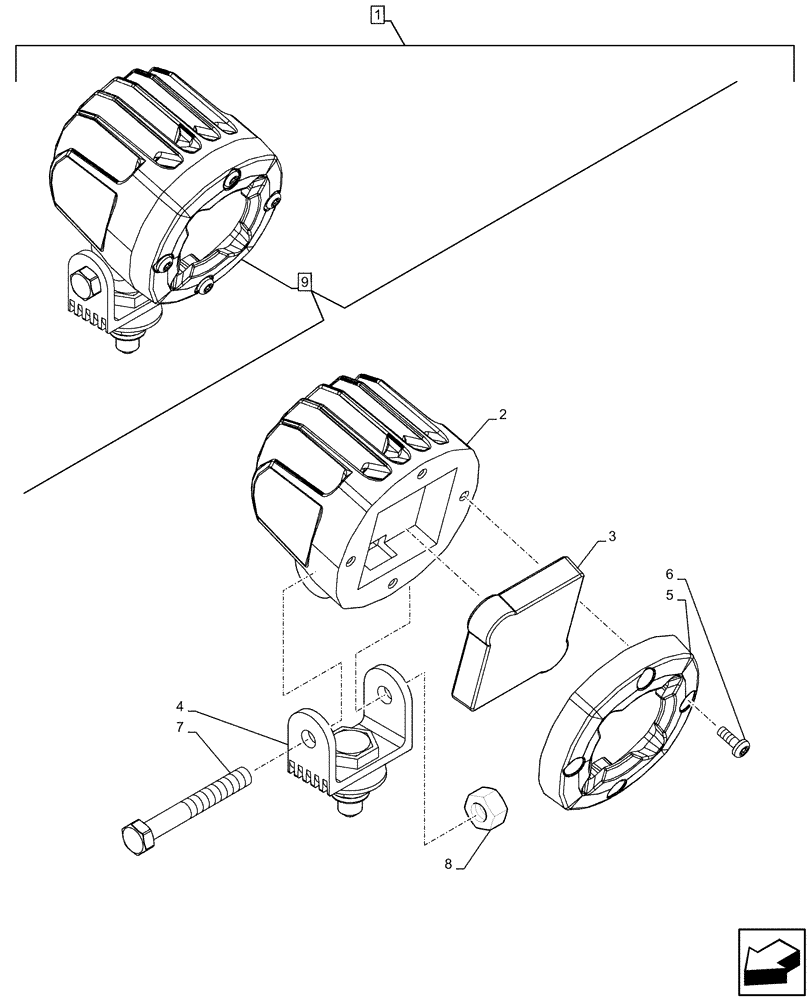

Запчасти Case CX250D LC LR (88.100.55[17]) - DIA KIT, RIGHT, REAR VIEW CAMERA, LIGHT, COMPONENTS (88) - ACCESSORIES
![Схема запчастей Case CX250D LC LR - (88.100.55[17]) - DIA KIT, RIGHT, REAR VIEW CAMERA, LIGHT, COMPONENTS (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5402431.png)
8
2
1
5
9
3
6
7
4
№
Артикул
Название
Примечание
Количество
1
KG0BR378-00
CONSTRUCTION DIA
Right, Rear View Camera, Light, Incl 2 - 9
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
NSS
NOT SOLD SEPARAT
Lamp, Incl in 9
1шт.
3
KHR37970
LENS
1шт.
4
KHR37960
BRACKET
1шт.
5
KHR37980
COVER
1шт.
6
NSS
NOT SOLD SEPARAT
Screw, Incl in 9
4шт.
7
NSS
NOT SOLD SEPARAT
Bolt, Incl in 9
1шт.
8
NSS
NOT SOLD SEPARAT
Nut, Incl in 9
1шт.
9
KHR37950
WORK LAMP
ASSY, Incl 2 - 8
1шт.
Выбрано товаров: 10
