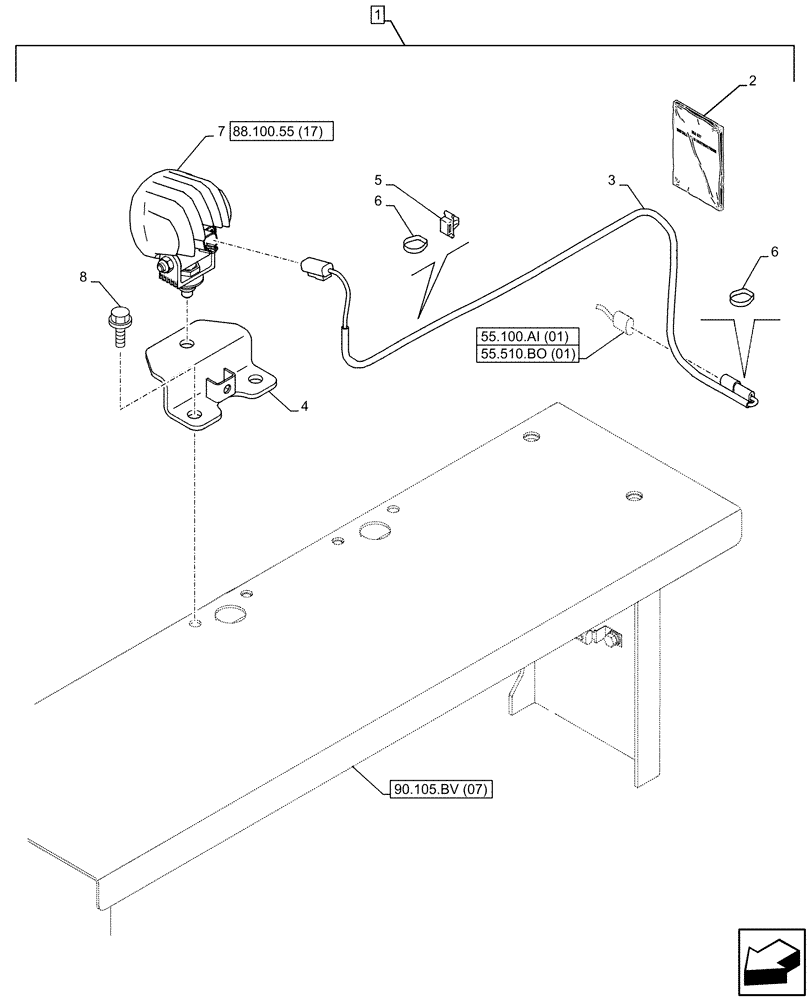

Запчасти Case CX250D LC LR (88.100.55[16]) - DIA KIT, RIGHT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES
![Схема запчастей Case CX250D LC LR - (88.100.55[16]) - DIA KIT, RIGHT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5402451.png)
1
6
6
55.510.bo (01)
7
4
55.100.ai (01)
5
88.100.55 (17)
8
90.105.bv (07)
2
3
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
KG0BR378-00
CONSTRUCTION DIA
Right, Rear View Camera, Light, Incl 2 - 8
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
47789082
INSTRUCTION
1шт.
2
47789115
INSTRUCTION
1шт.
3
KHR41840
WIRE HARNESS
1шт.
4
KHR41830
BRACKET
1шт.
5
KHR10220
MOUNTING CLIP
2шт.
6
150496A1
MOUNTING CLIP
250mm
6шт.
7
KHR37950
WORK LAMP
ASSY
1шт.
8
166347A1
BOLT,Sems, M10 x 30mm
M10 x 30mm
2шт.
