(88.100.35[216]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, COMPONENTS

Запчасти Case CX250D LC LR (88.100.35[216]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, COMPONENTS (88) - ACCESSORIES

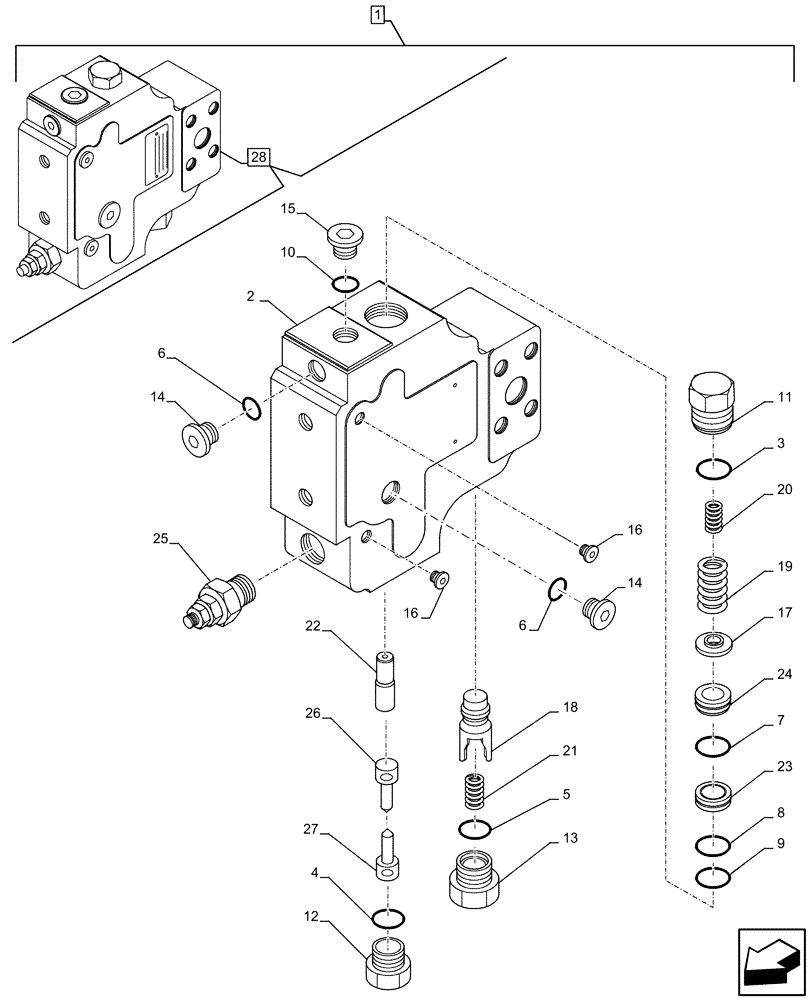

Схема запчастей Case CX250D LC LR - (88.100.35[216]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, COMPONENTS (88) - ACCESSORIES
23
10
5
13
6
16
14
7
11
1
16
3
6
4
28
27
19
17
25
18
20
15
9
2
22
24
14
26
12
8
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP608-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 28

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 28

1шт.

3

154523A1

O-RING

1шт.

4

154535A1

O-RING

1шт.

5

154499A1

O-RING

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

7

154475A1

O-RING

1шт.

8

LE013260

SEAL

1шт.

9

LBQ6021

O-RING

1шт.

10

166804A1

O-RING

1шт.

11

LK005500

PLUG

1шт.

12

LK005360

PLUG

1шт.

13

LK005530

PLUG

1шт.

14

LK00015

PLUG

2шт.

15

LK00008

PLUG

1шт.

16

LK00003

PLUG

1шт.

17

LR014580

SPRING SEAT

1шт.

18

LJ014310

VALVE POPPET

1шт.

19

LG005860

COMPRESSION SPRING

1шт.

20

LG005870

COMPRESSION SPRING

1шт.

21

LG005890

COMPRESSION SPRING

1шт.

22

NSS

NOT SOLD SEPARAT

Spool, Incl in 28

1шт.

23

NSS

NOT SOLD SEPARAT

Ring, Incl in 28

1шт.

24

NSS

NOT SOLD SEPARAT

Ring, Incl in 28

1шт.

25

LJ014280

VALVE PRESSURE RELIE

1шт.

26

LJ014300

PISTON

1шт.

27

LJ014290

PISTON

1шт.

28

KSV17260

SAFETY VALVE

ASSY, Incl 2 - 27

1шт.
