(88.100.35[215]) - DIA KIT, SAFETY VALVE, BOOM, CLAMP

Запчасти Case CX250D LC LR (88.100.35[215]) - DIA KIT, SAFETY VALVE, BOOM, CLAMP (88) - ACCESSORIES

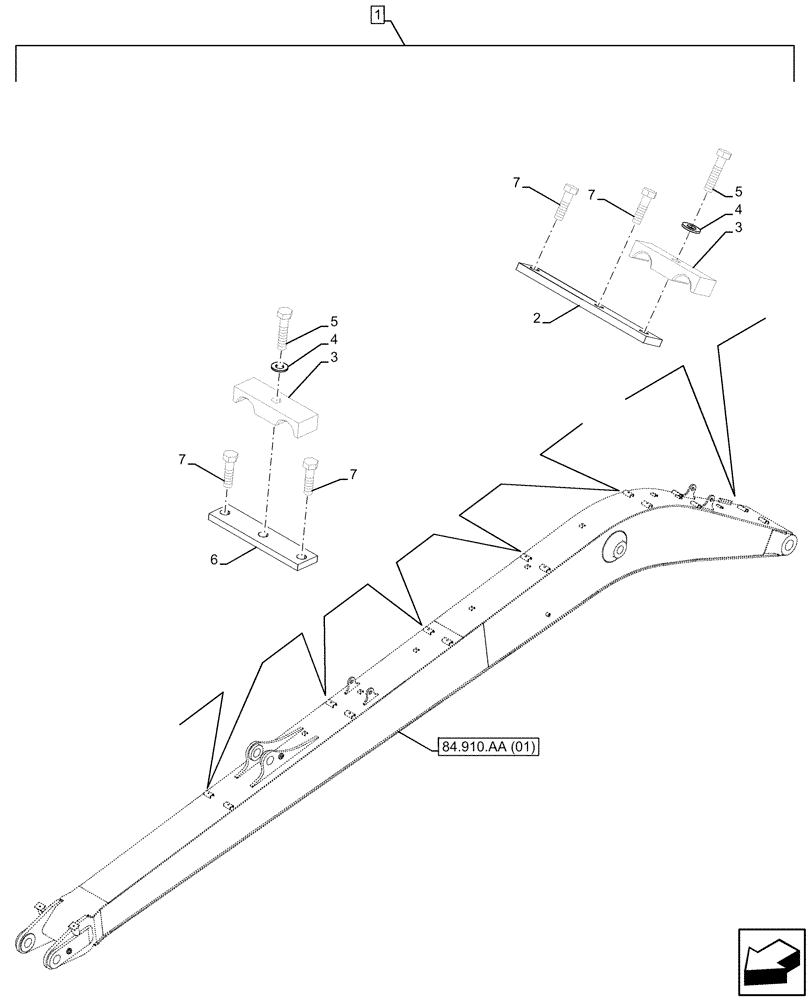

Схема запчастей Case CX250D LC LR - (88.100.35[215]) - DIA KIT, SAFETY VALVE, BOOM, CLAMP (88) - ACCESSORIES
7
4
3
5
84.910.aa (01)
3
2
6
5
7
4
7
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP608-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBV17150

PLATE

1шт.

3

168551A1

COLLAR

6шт.

4

150811A1

WASHER

6шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

6

KBV17140

PLATE

5шт.

7

102R016Y085R

BOLT

12шт.

Выбрано товаров: 8
