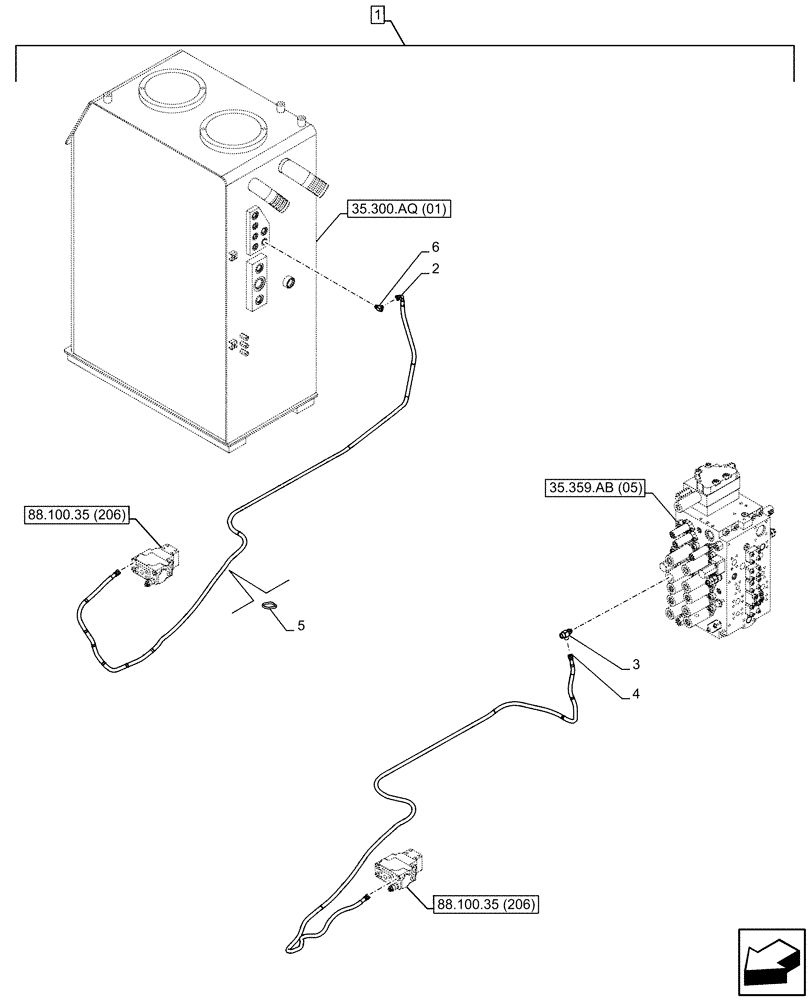

Запчасти Case CX250D LC LR (88.100.35[208]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

1

KG1BP608-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ29520

HYDRAULIC HOSE

3900mm

1шт.

3

KHJ31880

TEE

1шт.

4

KHJ29510

HYDRAULIC HOSE

4000mm

1шт.

5

150071A1

MOUNTING CLIP

16шт.

6

KHJ11560

TEE

1шт.
