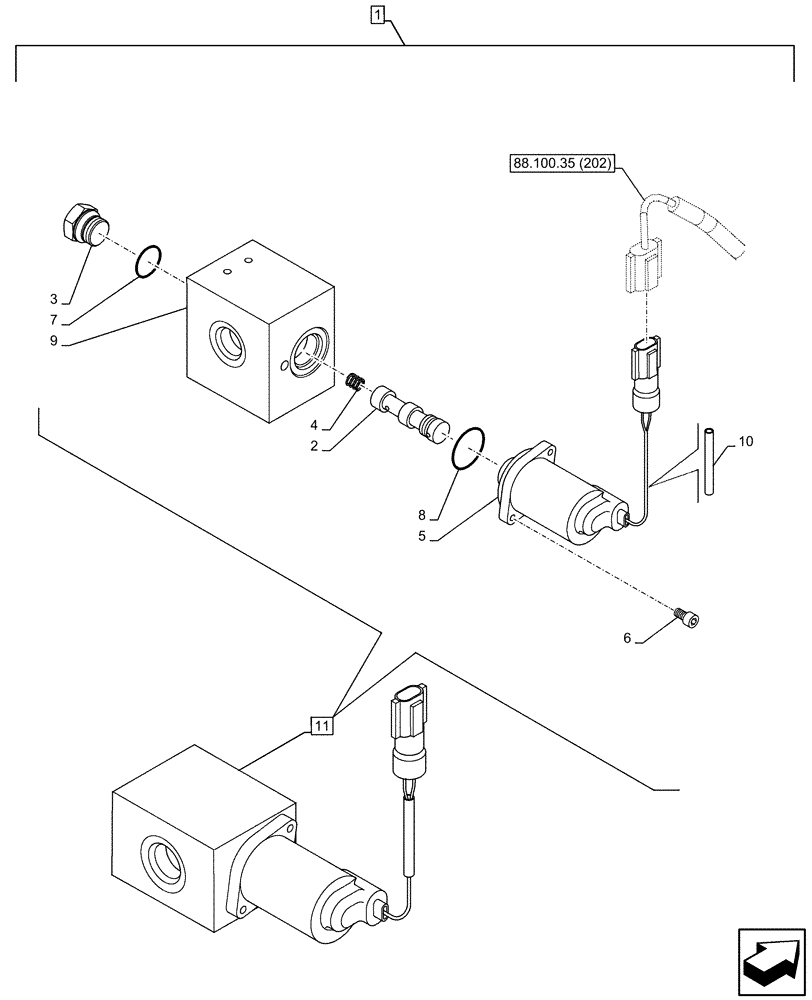

Запчасти Case CX250D LC LR (88.100.35[203]) - DIA KIT, FREE SWING, LOCKOUT SOLENOID VALVE, COMPONENTS (88) - ACCESSORIES

1

KG1BP540-00

CONSTRUCTION DIA

Free Swing Line, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Pin, Incl in 11

1шт.

3

155456A1

PLUG

1шт.

4

LSC0278

COMPRESSION SPRING

1шт.

5

CDP0873

SOLENOID VALVE

1шт.

6

160298A1

BOLT,Hex Skt

2шт.

7

154462A1

O-RING

1шт.

8

154482A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Case, Incl in 11

1шт.

10

LD001740

BAND

1шт.

11

159205A1

VALVE

ASSY, Incl 2 - 10

1шт.
