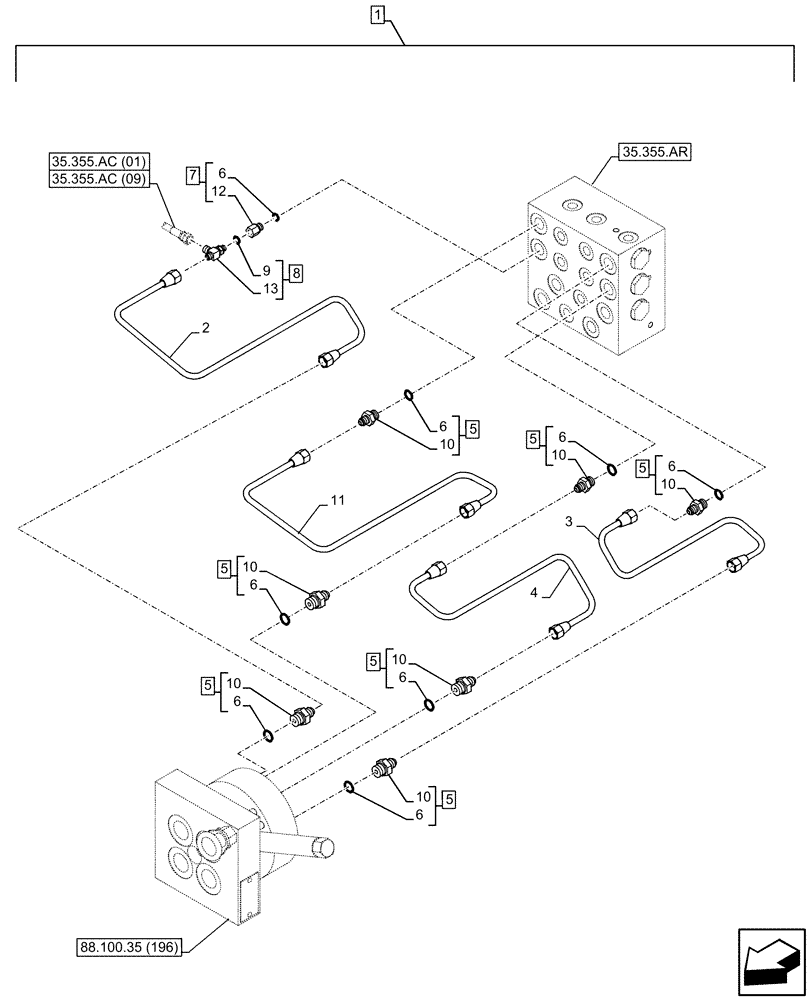

Запчасти Case CX250D LC LR (88.100.35[198]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR, HYDRAULIC LINE (88) - ACCESSORIES
![Схема запчастей Case CX250D LC LR - (88.100.35[198]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR, HYDRAULIC LINE (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5401234.png)
5
35.355.ac (01)
35.355.ac (09)
10
88.100.35 (196)
6
10
5
11
35.355.ar
5
4
9
5
6
7
1
5
6
10
8
10
6
5
6
6
2
3
5
10
13
10
12
6
10
6
№
Артикул
Название
Примечание
Количество
1
KG1BP454-00
CONSTRUCTION DIA
Selector Valve Kit 2 Way, Incl 2 - 13
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
KHJ32690
PIPE
1шт.
3
KHJ32490
PIPE
1шт.
4
KHJ23370
HYD TUBE
1шт.
5
KHJ1821
NIPPLE, LUBE
ASSY, Incl 6 (Qty 7), 10
7шт.
6
154475A1
O-RING
8шт.
7
168855A1
STUD
ASSY, G3/8" x G1/4", Incl 6 (Qty 1), 12
1шт.
8
KHJ2132
TEE
ASSY, G1/4" x M14 x G3/8", Incl 9, 13
1шт.
9
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
10
NSS
NOT SOLD SEPARAT
Lube Nipple, Incl in 5
7шт.
11
KHJ31960
PIPE
1шт.
12
NSS
NOT SOLD SEPARAT
Stud, Incl in 7
1шт.
13
NSS
NOT SOLD SEPARAT
Tee, Incl in 8
1шт.
Выбрано товаров: 14
