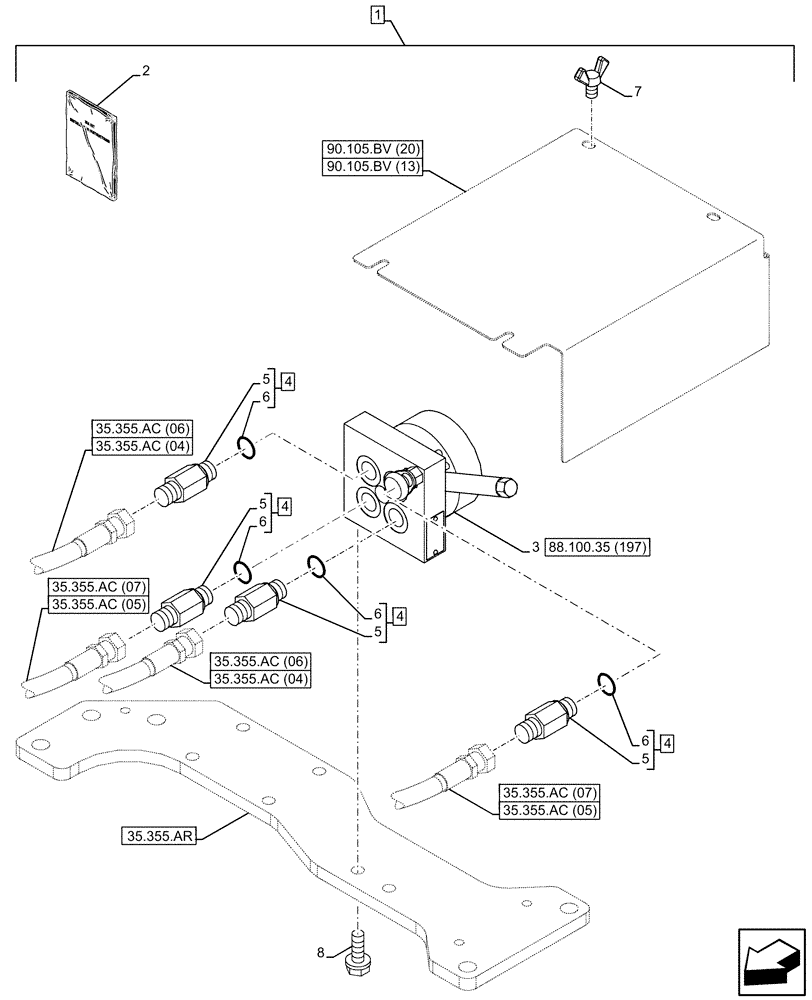

Запчасти Case CX250D LC LR (88.100.35[196]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR (88) - ACCESSORIES
![Схема запчастей Case CX250D LC LR - (88.100.35[196]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5387333.png)
35.355.ac (06)
6
5
90.105.bv (13)
35.355.ac (05)
4
35.355.ac (04)
6
6
5
35.355.ac (06)
90.105.bv (20)
1
5
4
35.355.ar
35.355.ac (07)
7
35.355.ac (04)
4
35.355.ac (07)
3
6
8
2
4
35.355.ac (05)
88.100.35 (197)
5
№
Артикул
Название
Примечание
Количество
1
KG1BP454-00
CONSTRUCTION DIA
2 Way Selector Valve Kit, Incl 2 - 8
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
47789095
INSTRUCTION
1шт.
3
KHJ12080
CONTROL BLOCK
ASSY
1шт.
4
159226A1
ADAPTER
ASSY, Incl 5, 6
4шт.
5
NSS
NOT SOLD SEPARAT
Fitting, Incl in 4
4шт.
6
154475A1
O-RING
4шт.
7
KHN17030
SPECIAL BOLT
M8 x 20mm
4шт.
8
166347A1
BOLT,Sems, M10 x 30mm
2шт.
