(88.100.35[142]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, BOOM, LINE

Запчасти Case CX250D LC LR (88.100.35[142]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES

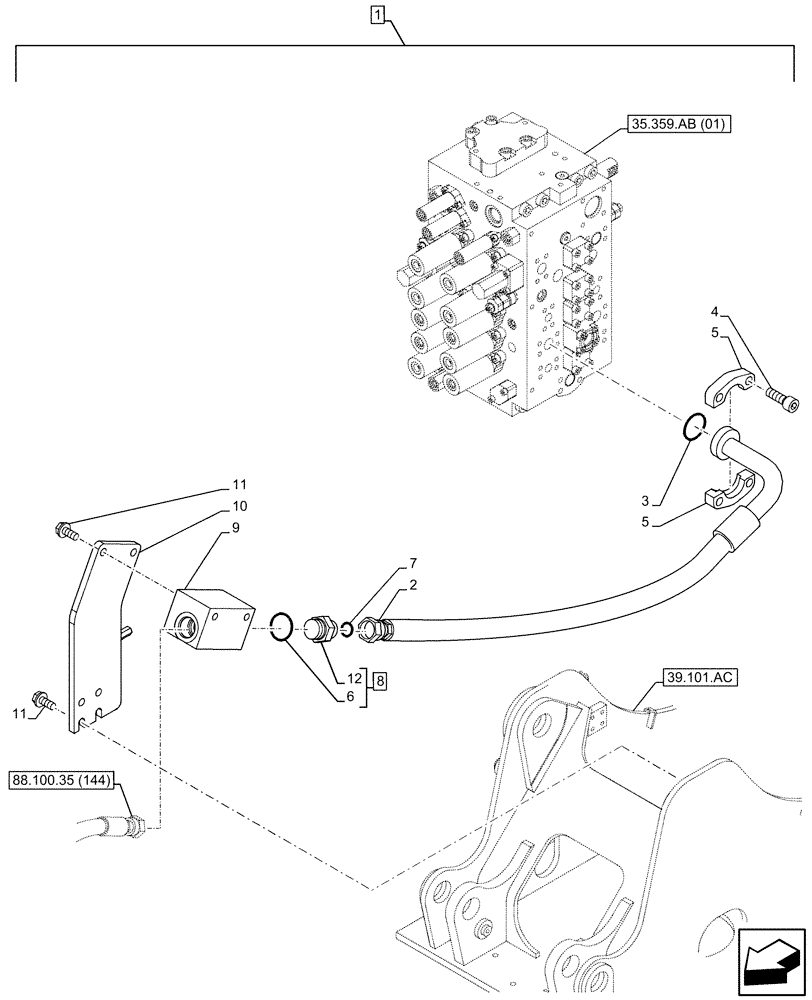

Схема запчастей Case CX250D LC LR - (88.100.35[142]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES
9
35.359.ab (01)
5
6
10
39.101.ac
1
12
7
8
11
88.100.35 (144)
11
2
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP605-00

CONSTRUCTION DIA

Double Acting Circuit Pedal, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBJ22370

HYDRAULIC HOSE

Manifold Valve to Control Valve A2 Port, 25.4mm ID x 890mm

1шт.

3

155211A1

O-RING

1шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

153459A1

FLANGE

2шт.

6

154523A1

O-RING

1шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

8

KHJ1349

ADAPTER

ASSY, Incl 6, 12

1шт.

9

KRJ12170

MANIFOLD VALVE

1шт.

10

KRJ11470

SUPPORT

1шт.

11

166352A1

BOLT

M12 x 30mm

6шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.
