(88.100.35[141]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, DECAL, HYDRAULIC, FOOT, CONTROLS

Запчасти Case CX250D LC LR (88.100.35[141]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, DECAL, HYDRAULIC, FOOT, CONTROLS (88) - ACCESSORIES

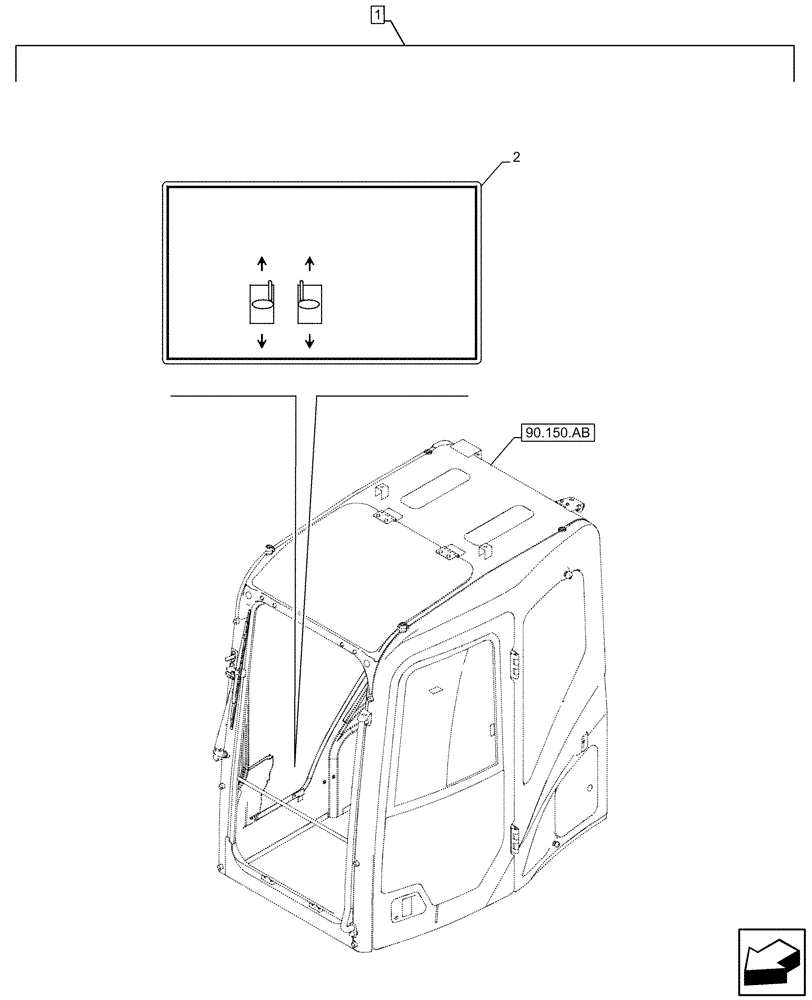

Схема запчастей Case CX250D LC LR - (88.100.35[141]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, DECAL, HYDRAULIC, FOOT, CONTROLS (88) - ACCESSORIES
90.150.ab
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP605-00

CONSTRUCTION DIA

Double Acting Circuit Pedal Kit, Incl 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHP27130

DECAL

1шт.

Выбрано товаров: 3
