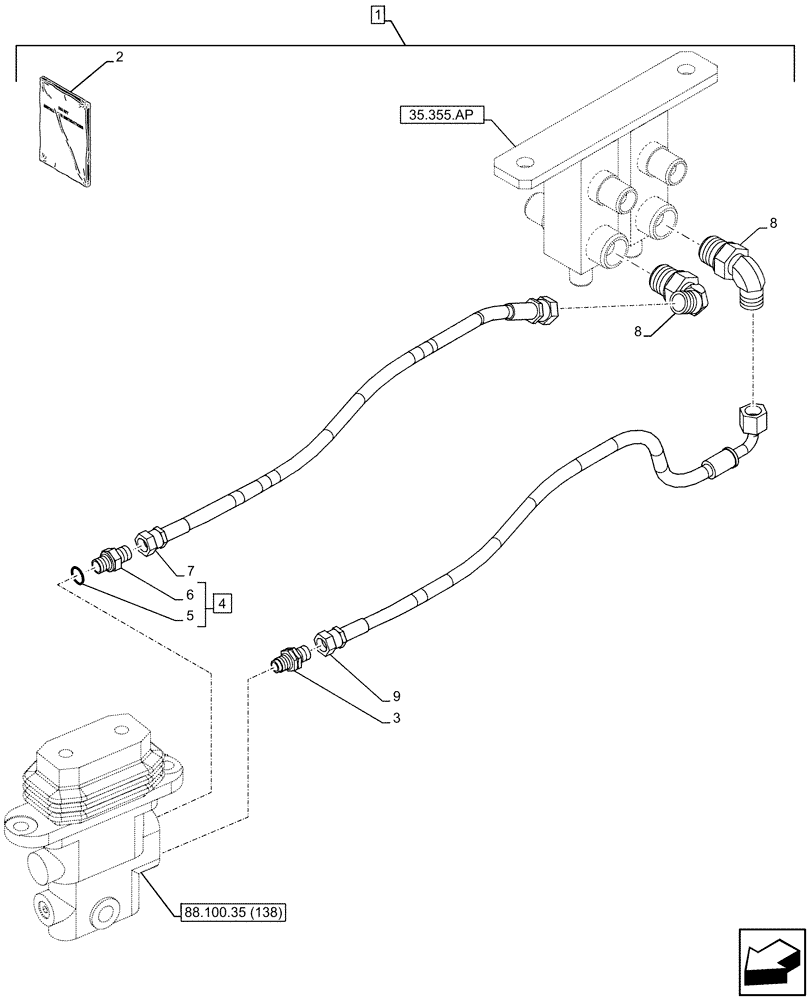

Запчасти Case CX250D LC LR (88.100.35[136]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, LINE (88) - ACCESSORIES

1

KG1BP605-00

CONSTRUCTION DIA

Double Acting Circuit Pedal, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47880445

INSTRUCTION

1шт.

3

161841A1

HYD CONNECTOR

G1/4" x G1/4"

1шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

G1/4" x G1/4", ASSY, Incl 5, 6

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

KHJ2052

HOSE

Foot Control Valve T Port to Hydraulic Manifold T5 Port, 6mm ID x 1100mm

1шт.

8

KHJ28580

ELBOW

2шт.

9

KHJ2146

HOSE

Foot Control Valve P Port to Hydraulic Manifold P5 Port, 6mm ID x 1200mm

1шт.
