(88.100.35[111]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, ARM, LINE

Запчасти Case CX250D LC LR (88.100.35[111]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, ARM, LINE (88) - ACCESSORIES

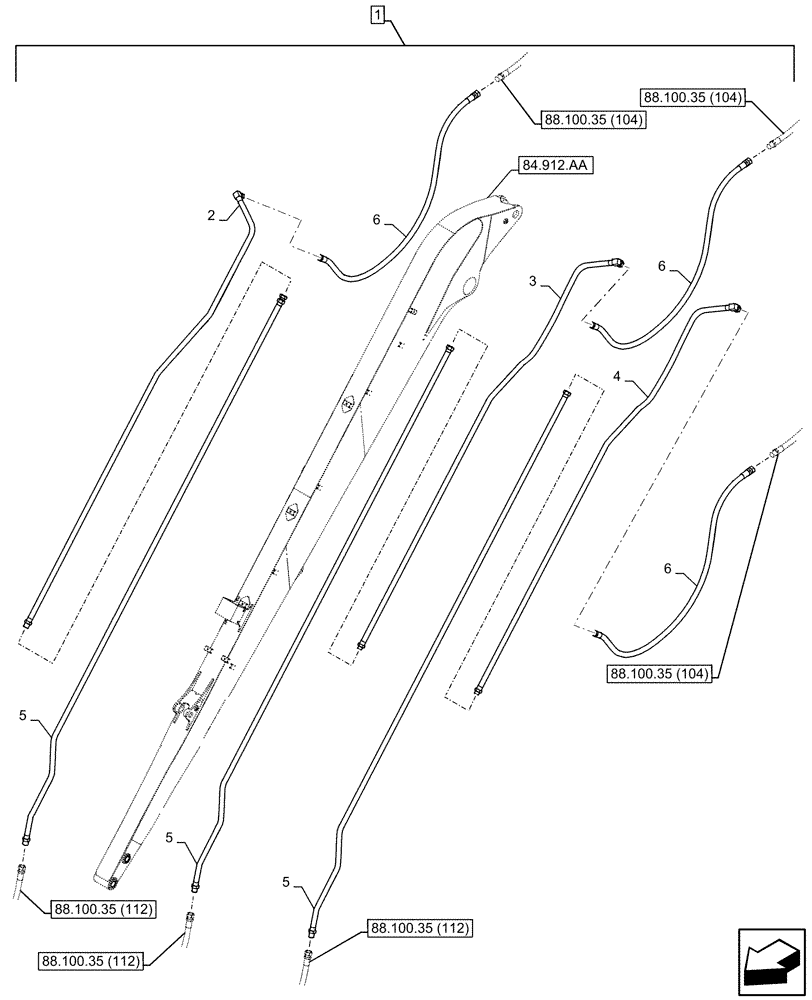

Схема запчастей Case CX250D LC LR - (88.100.35[111]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, ARM, LINE (88) - ACCESSORIES
88.100.35 (104)
6
5
88.100.35 (112)
84.912.aa
3
6
5
5
1
2
4
88.100.35 (112)
88.100.35 (112)
6
88.100.35 (104)
88.100.35 (104)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP607-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBV37960

PIPE

RH

1шт.

3

KBV37930

PIPE

1шт.

4

KBV37900

PIPE

1шт.

5

KBV37910

PIPE

3шт.

6

KRV43990

HYDRAULIC HOSE

3шт.

Выбрано товаров: 7
