(88.100.35[108]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, HYDRAULIC LINE

Запчасти Case CX250D LC LR (88.100.35[108]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

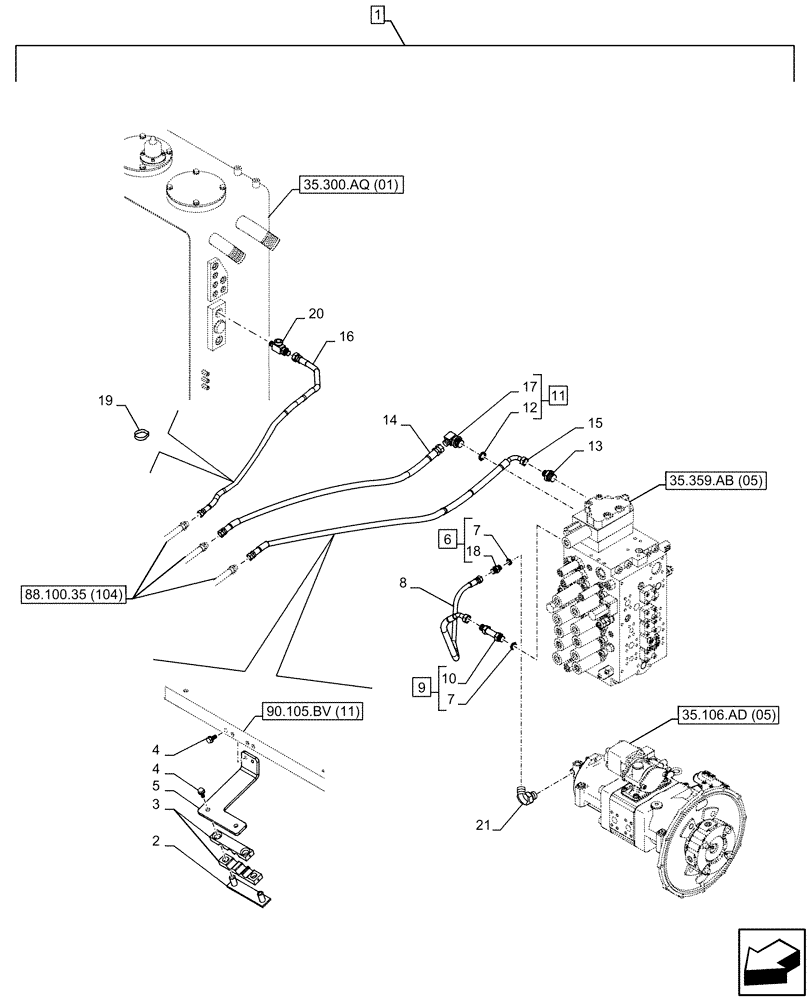

Схема запчастей Case CX250D LC LR - (88.100.35[108]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, HYDRAULIC LINE (88) - ACCESSORIES
88.100.35 (104)
1
15
19
9
5
35.300.aq (01)
7
4
21
6
12
10
35.106.ad (05)
13
14
20
4
3
7
11
16
2
8
18
90.105.bv (11)
17
35.359.ab (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP607-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KRJ11590

SUPPORT

1шт.

3

KRJ11580

HOSE CLIP

2шт.

4

166052A1

BOLT

4шт.

5

KBJ19730

BRACKET

1шт.

6

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 7 (Qty 1), 18

1шт.

7

154487A1

O-RING

2шт.

8

KBJ24900

HYDRAULIC HOSE

1шт.

9

KAJ2432

ADAPTER

ASSY, Incl 7 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

157936A1

ELBOW

ASSY, Incl 12, 17

1шт.

12

154503A1

O-RING

1шт.

13

168988A1

ADAPTER

1шт.

14

KBJ12420

HYDRAULIC HOSE,12.70 mm ID x 1430.00 mm

1шт.

15

KBJ12440

HYDRAULIC HOSE

1шт.

16

KBJ26480

HYDRAULIC HOSE

1шт.

17

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

19

150496A1

MOUNTING CLIP

250mm

4шт.

20

KHJ1300

TEE

1шт.

21

KHJ28600

ELBOW

1шт.
