(88.100.35[100]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, OPTION, WIRE HARNESS

Запчасти Case CX250D LC LR (88.100.35[100]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, OPTION, WIRE HARNESS (88) - ACCESSORIES

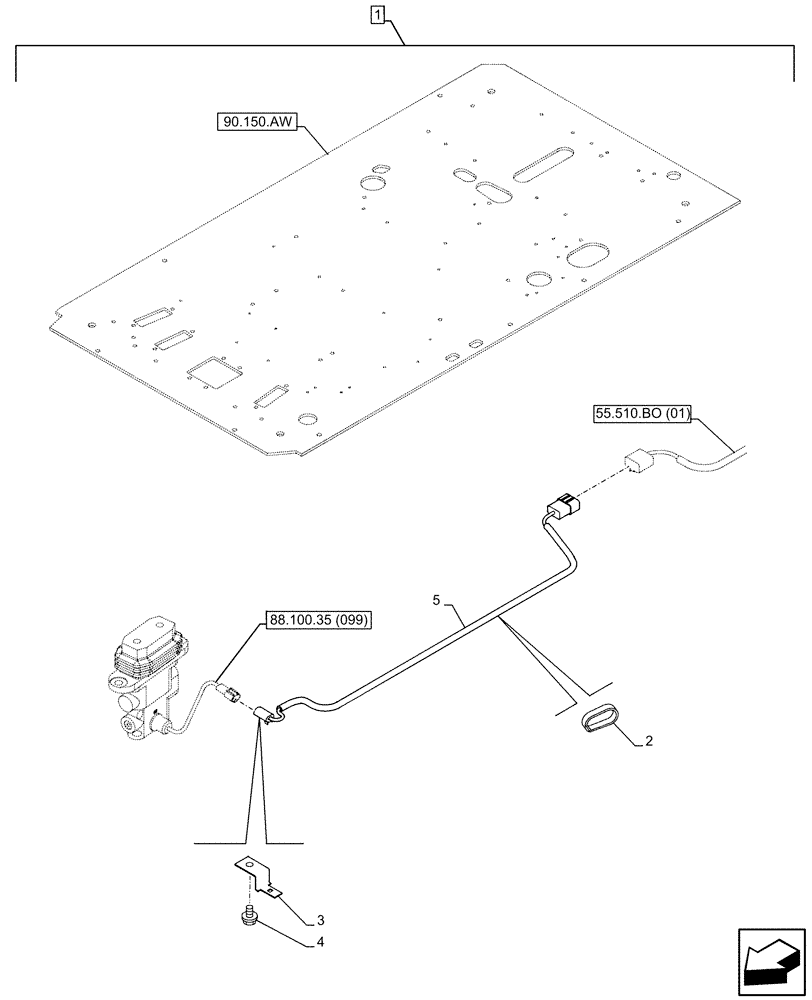

Схема запчастей Case CX250D LC LR - (88.100.35[100]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, OPTION, WIRE HARNESS (88) - ACCESSORIES
88.100.35 (099)
4
3
5
90.150.aw
55.510.bo (01)
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP607-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150496A1

MOUNTING CLIP

250mm

1шт.

3

165405A1

CLIP

1шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

5

KHR40390

WIRE HARNESS

1шт.

Выбрано товаров: 6
