(88.100.35[099]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, SPEED SENSOR

Запчасти Case CX250D LC LR (88.100.35[099]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, SPEED SENSOR (88) - ACCESSORIES

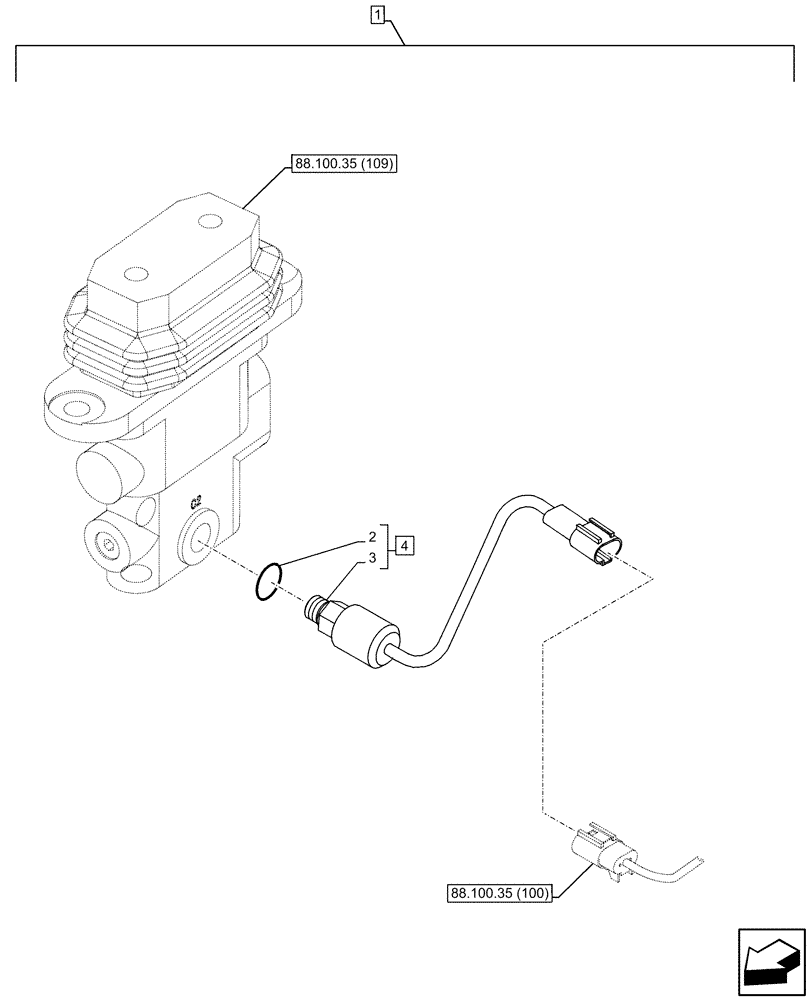

Схема запчастей Case CX250D LC LR - (88.100.35[099]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, SPEED SENSOR (88) - ACCESSORIES
1
88.100.35 (100)
88.100.35 (109)
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP607-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

NSS

NOT SOLD SEPARAT

Sensor, Incl in 4

1шт.

4

KHR21490

PRESSURE SWITCH

ASSY, 0.49MPa, Incl 2, 3

1шт.

Выбрано товаров: 5
