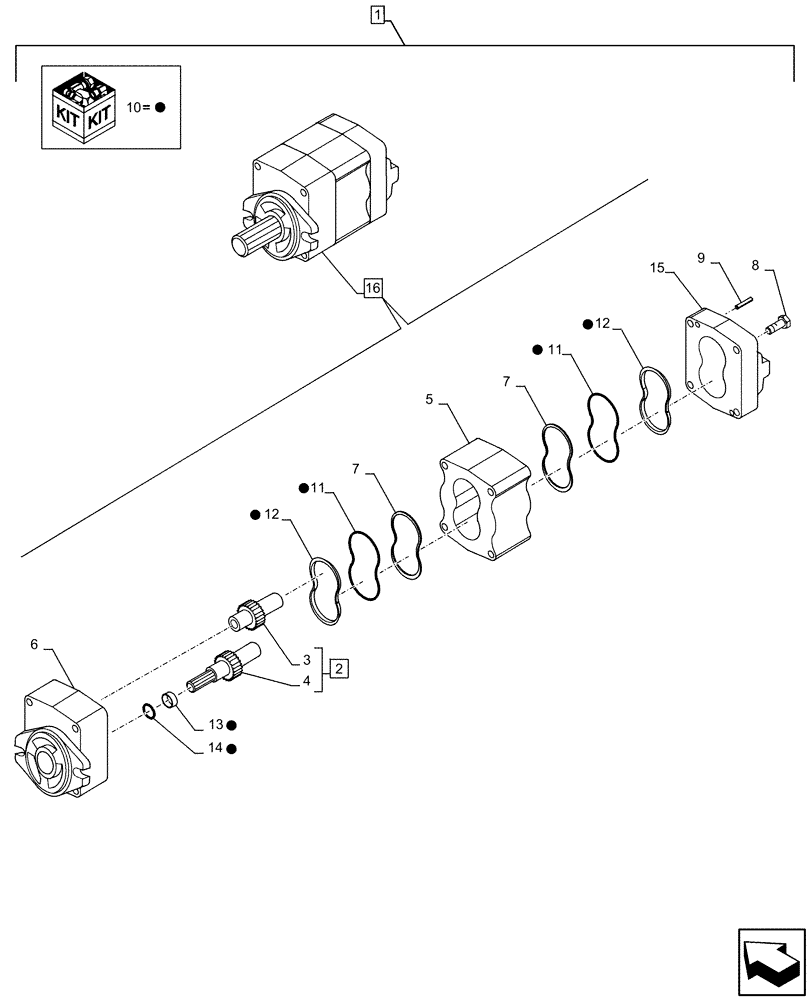

Запчасти Case CX250D LC LR (88.100.35[097]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, HYDRAULIC PUMP, GEAR, COMPONENTS (88) - ACCESSORIES

1

KG1BP607-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

LC002970

GEAR

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Shaft, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 16

1шт.

6

LW006900

COVER

1шт.

7

LR015150

PLATE

2шт.

8

LA015390

BOLT

4шт.

9

LA011060

SPECIAL PIN

4шт.

10

LZ008000

REPAIR KIT

Kit, Incl 11 - 14

1шт.

11

LAP0032

SEAL

2шт.

12

LBP0073

BACK-UP RING

2шт.

13

LAP0033

OIL SEAL

1шт.

14

LMP0257

RING

1шт.

15

LW006890

COVER

1шт.

16

KRJ34770

PUMP

ASSY, Incl 2 - 15

1шт.
