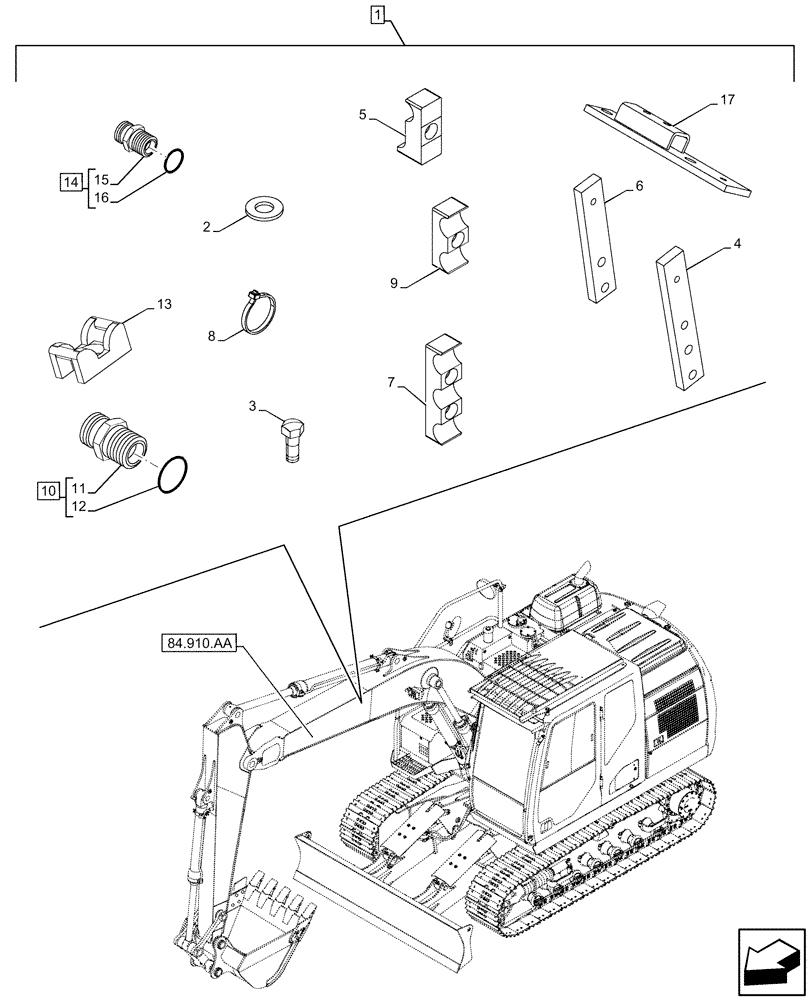

Запчасти Case CX250D LC LR (88.100.35[090]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, CLAMP, PLUG, ADAPTER (88) - ACCESSORIES

1

KG1BP606-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

2

150811A1

WASHER

28шт.

3

166348A1

BOLT

24шт.

3

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

M6 x 8mm

3шт.

3

102R016Y085R

BOLT

2шт.

3

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

28шт.

3

166373A1

BOLT,Sems, M16 x 40mm

4шт.

4

KBV37980

BAR

12шт.

5

166401A1

HALF-FLANGE

13шт.

6

KBV37990

BAR

2шт.

7

FBV12950

CLAMP

1шт.

8

150498A1

MOUNTING CLIP

297mm

8шт.

8

150496A1

MOUNTING CLIP

250mm

6шт.

9

167824A1

COLLAR

13шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" G1/4", Incl 11, 12

2шт.

11

NSS

NOT SOLD SEPARAT

Adapter, Incl in 10

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

13

150860A1

COLLAR

25mm x 14.5mm x 12mm, 6.3mm D

3шт.

14

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" G1/2", Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Adapter, Incl in 14

1шт.

16

154487A1

O-RING

1шт.

17

KBV38000

BRACKET

1шт.
