(88.100.35[084]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, COMPONENTS

Запчасти Case CX250D LC LR (88.100.35[084]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, COMPONENTS (88) - ACCESSORIES

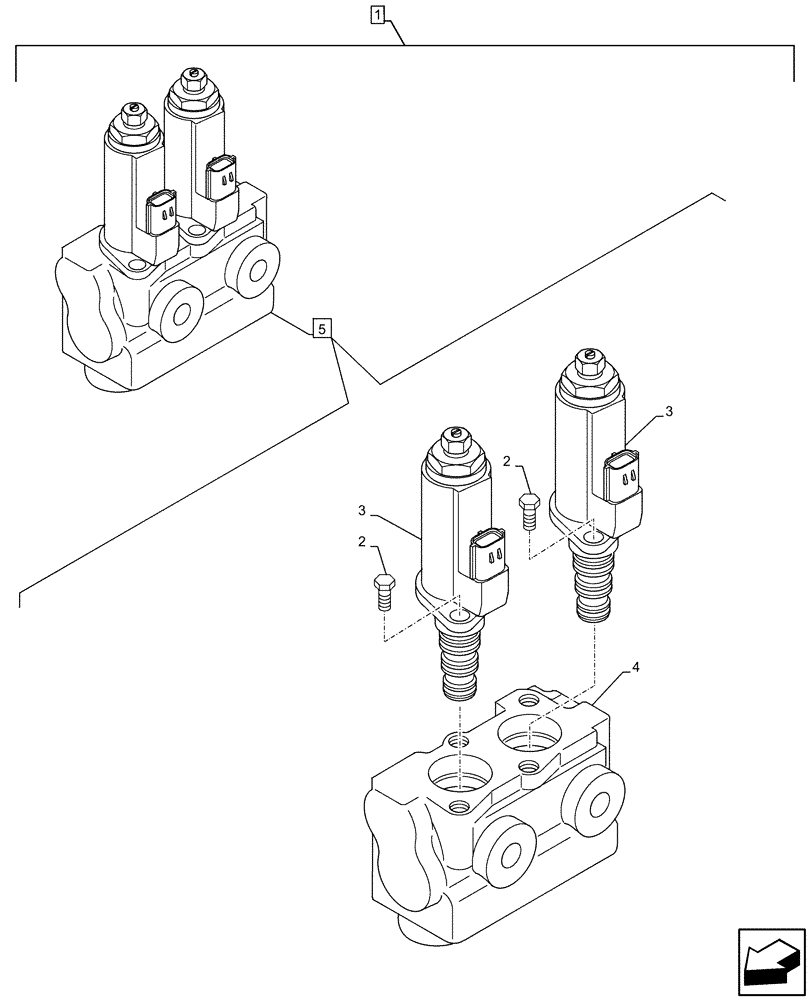

Схема запчастей Case CX250D LC LR - (88.100.35[084]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, COMPONENTS (88) - ACCESSORIES
2
3
4
2
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP606-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

102R005Y012R

BOLT

M5 x 12mm

4шт.

3

LJ017960

VALVE

2шт.

4

LW005920

BODY

1шт.

5

MFJ71500

VALVE SECTION

ASSY, Incl 2 - 4

1шт.

Выбрано товаров: 6
